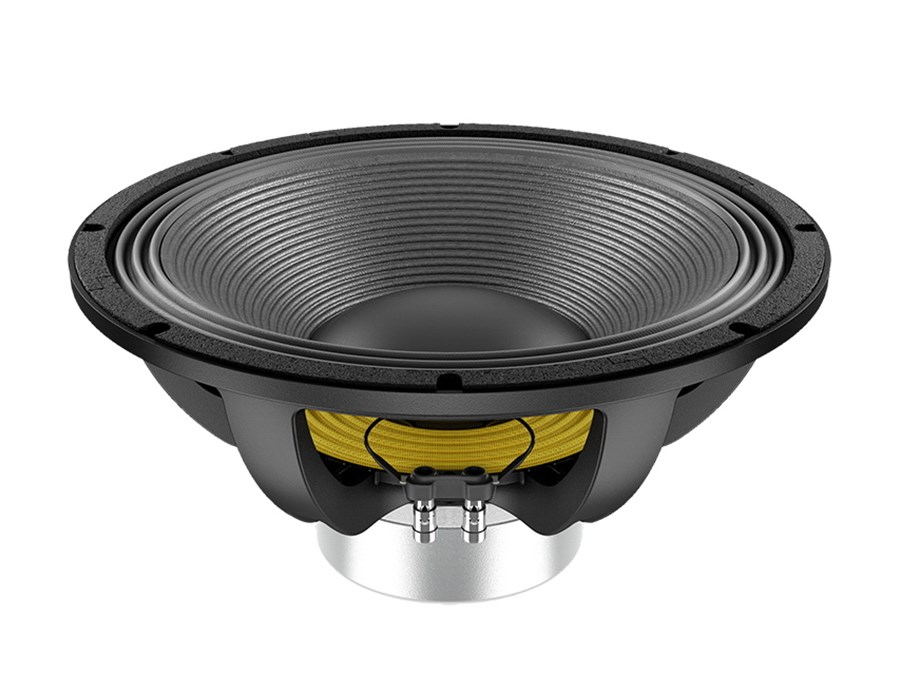

Lavoce WAN154.00 15 inç 3000W Hoparlör
Lavoce WAN154.00 15 inç 3000W Hoparlör
Lavoce WAN154.00 15 inç 3000W Hoparlör

Lavoce WAN154.00 15 inç 3000W Hoparlör

Marka : Lavoce
Fiyat : $928.80(KDV Dahil)

Lavoce WAN154.00 15 inç 3000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN154.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN154.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH COPPER VOICE COIL
94.5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6.3
Program power W 3000
AES Power rating W 1500
Sensitivity dB 94,5
Frequency range Hz 40 ÷ 1000
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 97 x 31 x 14 (3.8 x 1.2 x 0.6)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatmen
Surround material   Polycotton
Xmax mm (in) 11,9 (0.47)
Xmech mm (in) 21,9 (0.86)
Gap height mm (in) 16 (0.63)
Voice coil winding height mm (in) 31,7 (1.25)
Driver displacement volume l (ft³) 4,5 (0.16)
Recommended Enclosure l (ft³) 97,8 (3.85)
Recommended Tuning Hz 42
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,3
Resonance frequency (Fs) Hz 39
Moving mass (Mms) g (oz) 200,3 (7.07)
Compliance (Cms) mm/N 0,085
Force factor (Bxl) N/A 24,91
Mechanical Q-factor (Qms)   8,5
Electrical Q-factor (Qes)   0,42
Total Q-factor (Qts)   0,4
Equivalent air volume (Vas) l (ft3) 82,56 (2.92)
Voice coil inductance (Le) mH 1,81
Diaphragm area (Sd) cm2 (in.2) 829,6 (128.6)
Reference efficiency (Eta 0)   4,8 %
Efficiency bandwidth product (EBP) Hz 93
SHIPPING INFORMATION
Net weight kg (lb) 9,2 (20.2)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 230 (17.2 x 17.2 x 9)
Multipack weight kg (lb) 11,5 (25.3)
