Marka : Lavoce
Fiyat : $655.20(KDV Dahil)

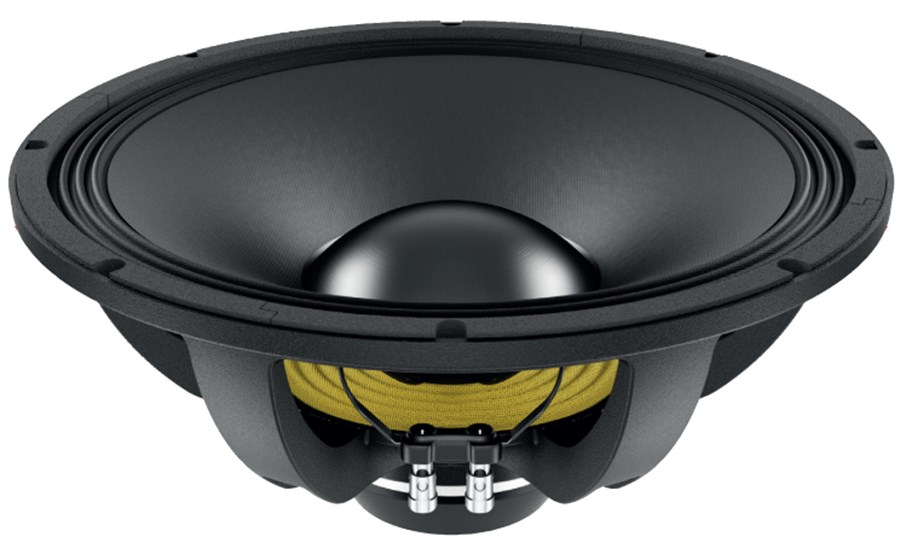

Lavoce WAN153.01 15 inç 1200W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN153.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN153.01'i www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH COPPER VOICE COIL
100 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6.8
Program power W 1200
AES Power rating W 600
Sensitivity dB 100
Frequency range Hz 40 ÷ 2000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 131 x 86 x 8 (5.16 x 3.39 x 0.31)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6,6 (0.26)
Xmech mm (in) 13,3 (0.52)
Gap height mm (in) 11,5 (0.45)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 4,3 (0.15)
Recommended Enclosure l (ft³) 143 (4.7)
Recommended Tuning Hz 60
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,34
Resonance frequency (Fs) Hz 44
Moving mass (Mms) g (oz) 107,6 (3.79)
Compliance (Cms) mm/N 0,122
Force factor (Bxl) N/A 24,79
Mechanical Q-factor (Qms)   4,3
Electrical Q-factor (Qes)   0,26
Total Q-factor (Qts)   0,24
Equivalent air volume (Vas) l (ft3) 134,1 (4.74)
Voice coil inductance (Le) mH 1,06
Diaphragm area (Sd) cm2 (in.2) 881,4 (136.6)
Reference efficiency (Eta 0)   4,24
Efficiency bandwidth product (EBP) Hz 169
SHIPPING INFORMATION
Net weight kg (lb) 6,1 (13.4)
Multipack size W x D x H mm x mm x mm (in x in x in) 417 x 417 x 213 (16.4 x 16.4 x 8.4)
Multipack weight kg (lb) 7,7 (16.9)
