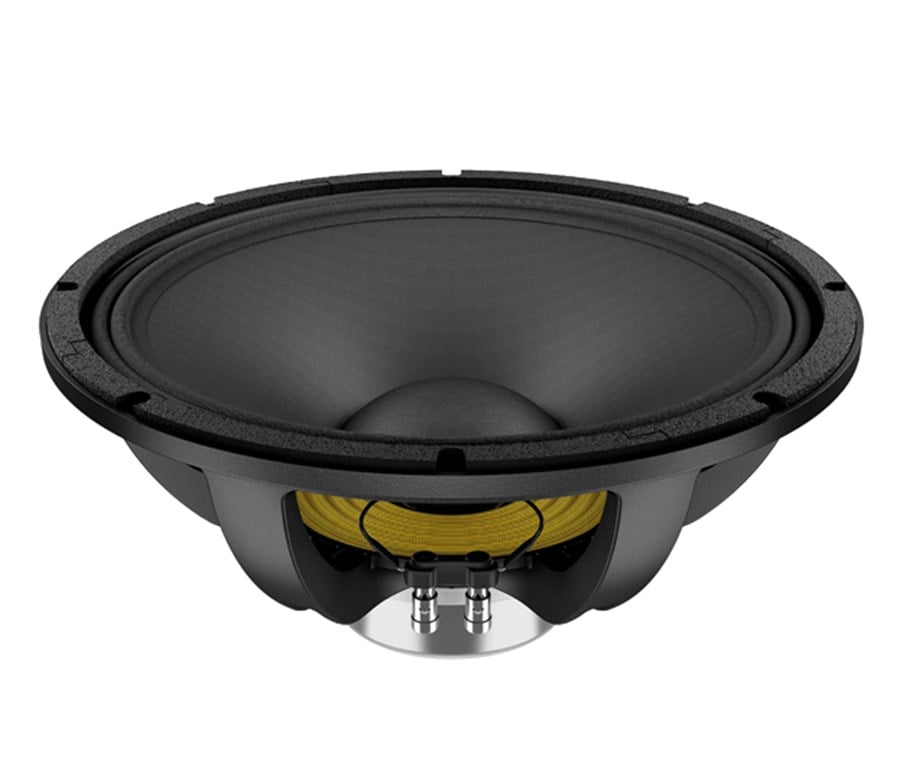

Lavoce WAN153.00 15 inç 1000W Hoparlör
Lavoce WAN153.00 15 inç 1000W Hoparlör
Lavoce WAN153.00 15 inç 1000W Hoparlör

Lavoce WAN153.00 15 inç 1000W Hoparlör

Marka : Lavoce
Fiyat : $502.80(KDV Dahil)

Lavoce WAN153.00 15 inç 1000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN153.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN153.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH CCAW VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5.3
Program power W 1000
AES Power rating W 500
Sensitivity dB 98
Frequency range Hz 45 ÷ 3000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 75 x 10 (2.95 x 0.4)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 7 (0.28)
Xmech mm (in) 12,7 (0.5)
Gap height mm (in) 10,5 (0.41)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 4,9 (0.17)
Recommended Enclosure l (ft³) 93 (3.3)
Recommended Tuning Hz 50
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,7
Resonance frequency (Fs) Hz 43
Moving mass (Mms) g (oz) 101,4 (3.58)
Compliance (Cms) mm/N 0,135
Force factor (Bxl) N/A 17,3
Mechanical Q-factor (Qms)   9,49
Electrical Q-factor (Qes)   0,43
Total Q-factor (Qts)   0,41
Equivalent air volume (Vas) l (ft3) 137,6 (4.86)
Voice coil inductance (Le) mH 0.76
Diaphragm area (Sd) cm2 (in.2) 850 (131.8)
Reference efficiency (Eta 0)   2,50 %
Efficiency bandwidth product (EBP) Hz 100
SHIPPING INFORMATION
Net weight kg (lb) 5,8 (12.7)
Multipack size W x D x H mm x mm x mm (in x in x in) 452 x 452 x 204 (17.8 x 17.8 x 8)
Multipack weight kg (lb) 8 (17.6)
