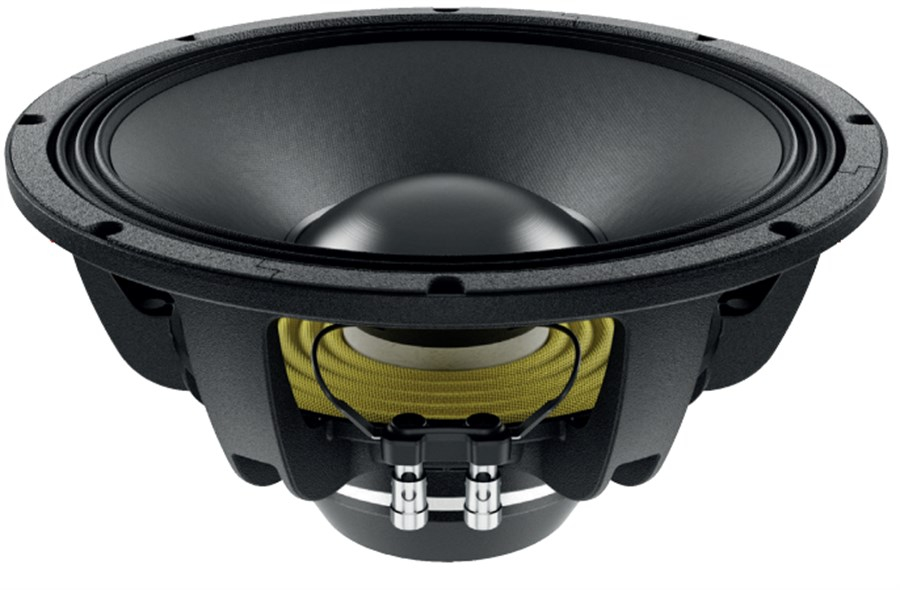

Lavoce WAN123.01 12 inç 1000W Hoparlör
Lavoce WAN123.01 12 inç 1000W Hoparlör
Lavoce WAN123.01 12 inç 1000W Hoparlör

Lavoce WAN123.01 12 inç 1000W Hoparlör

Marka : Lavoce
Fiyat : $571.20(KDV Dahil)

Lavoce WAN123.01 12 inç 1000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN123.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN123.01'i www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH COPPER VOICE COIL
99 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,4
Program power W 1000
AES Power rating W 500
Sensitivity dB 99
Frequency range Hz 40 ÷ 2000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 131 x 86 x 8 (5.16 x 3.39 x 0.31)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 6,6 (0.26)
Xmech mm (in) 13,3 (0.52)
Gap height mm (in) 11,5 (0.45)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 2,5 (0.09)
Recommended Enclosure l (ft³) 41,3 (1.46)
Recommended Tuning Hz 65
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 57
Moving mass (Mms) g (oz) 76,8 (2.71)
Compliance (Cms) mm/N 0,1
Force factor (Bxl) N/A 24,02
Mechanical Q-factor (Qms)   6,6
Electrical Q-factor (Qes)   0,25
Total Q-factor (Qts)   0,24
Equivalent air volume (Vas) l (ft3) 41,4 (1.46)
Voice coil inductance (Le) mH 0,96
Diaphragm area (Sd) cm2 (in.2) 540 (83.7)
Reference efficiency (Eta 0)   3,02
Efficiency bandwidth product (EBP) Hz 229
SHIPPING INFORMATION
Net weight kg (lb) 5,2 (11.4)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 192 (14 x 14 x 7.6)
Multipack weight kg (lb) 6,8 (15)
