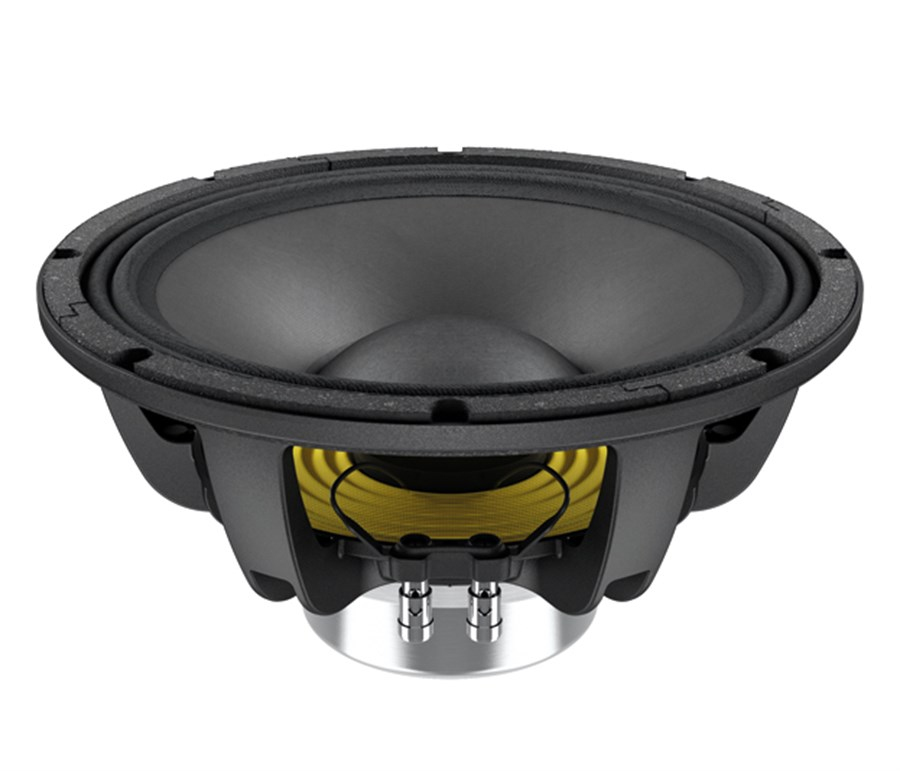

Lavoce WAN123.00 12 inç 1000W Hoparlör
Lavoce WAN123.00 12 inç 1000W Hoparlör
Lavoce WAN123.00 12 inç 1000W Hoparlör

Lavoce WAN123.00 12 inç 1000W Hoparlör

Marka : Lavoce
Fiyat : $464.40(KDV Dahil)

Lavoce WAN123.00 12 inç 1000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN123.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN123.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH CCAW VOICE COIL
99 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,7
Program power W 1000
AES Power rating W 500
Sensitivity dB 99
Frequency range Hz 50 ÷ 3000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 75 x 10 (2.95 x 0.39)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 7 (0.28)
Xmech mm (in) 12,5 (0.49)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 2,4 (0.08)
Recommended Enclosure l (ft³) 62,3 (2.2)
Recommended Tuning Hz 55
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,8
Resonance frequency (Fs) Hz 49
Moving mass (Mms) g (oz) 61,5 (2.17)
Compliance (Cms) mm/N 0,172
Force factor (Bxl) N/A 17,9
Mechanical Q-factor (Qms)   6,54
Electrical Q-factor (Qes)   0,28
Total Q-factor (Qts)   0,26
Equivalent air volume (Vas) l (ft3) 68,8 (2.43)
Voice coil inductance (Le) mH 0,69
Diaphragm area (Sd) cm2 (in.2) 530,1 (82.3)
Reference efficiency (Eta 0)   2,75 %
Efficiency bandwidth product (EBP) Hz 175
SHIPPING INFORMATION
Net weight kg (lb) 5,2 (11.4)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 192 (14 x 14 x 7.6)
Multipack weight kg (lb) 6,8 (15)
