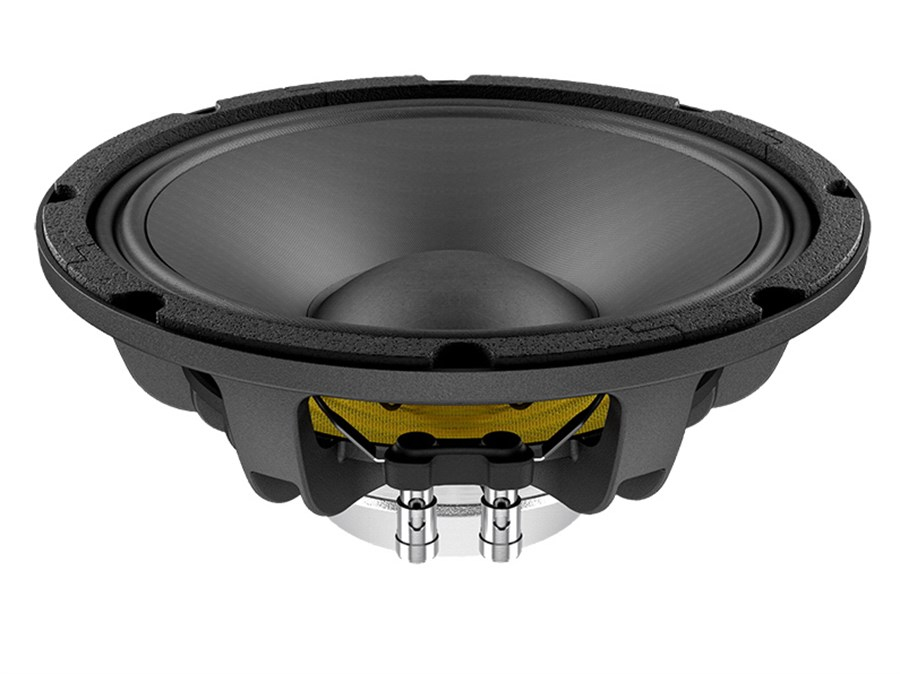

Lavoce WAN102.50 10 inç 600W Hoparlör
Lavoce WAN102.50 10 inç 600W Hoparlör

Lavoce WAN102.50 10 inç 600W Hoparlör

Marka : Lavoce
Fiyat : $373.20(KDV Dahil)

Lavoce WAN102.50 10 inç 600W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN102.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN102.50'i www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH CCAW VOICE COIL
97 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,7
Program power W 600
AES Power rating W 300
Sensitivity dB 97
Frequency range Hz 80 ÷ 4000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 64 x 8 (2.52 x 0.31)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 5,1 (0.2)
Xmech mm (in) 9,1 (0.36)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 14,2 (0.56)
Driver displacement volume l (ft³) 1,2 (0.04)
Recommended Enclosure l (ft³) 23 (0.81)
Recommended Tuning Hz 80
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,6
Resonance frequency (Fs) Hz 78
Moving mass (Mms) g (oz) 32,6 (1.15)
Compliance (Cms) mm/N 0,129
Force factor (Bxl) N/A 15,3
Mechanical Q-factor (Qms)   4,73
Electrical Q-factor (Qes)   0,38
Total Q-factor (Qts)   0,35
Equivalent air volume (Vas) l (ft3) 21,52 (0.76)
Voice coil inductance (Le) mH 0,52
Diaphragm area (Sd) cm2 (in.2) 343,1 (53.17)
Reference efficiency (Eta 0)   2,50 %
Efficiency bandwidth product (EBP) Hz 205
SHIPPING INFORMATION
Net weight kg (lb) 2,8 (6.2)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 3,7 (8.1)
