Marka : Lavoce
Fiyat : $362.40(KDV Dahil)

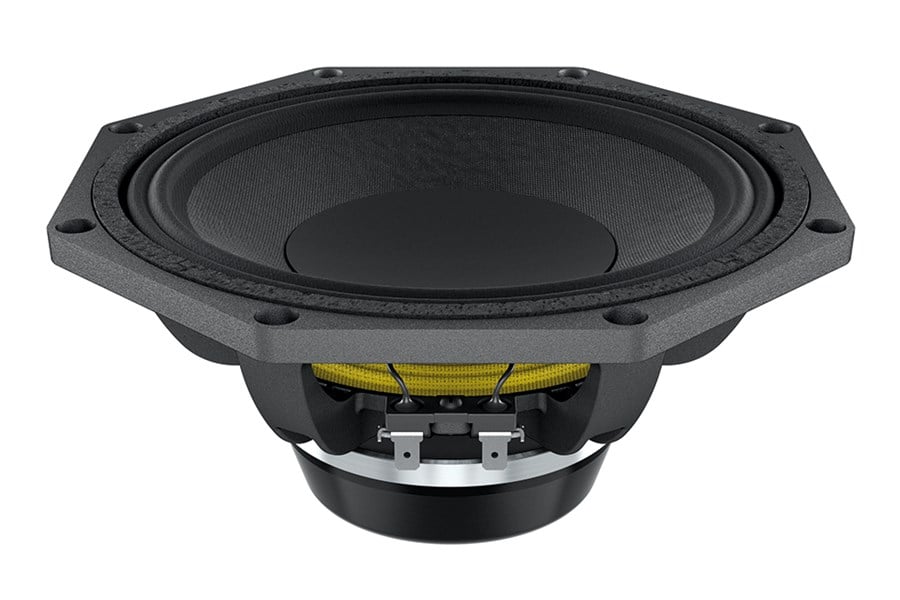

Lavoce WAN082.01 8 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN082.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN082.01'i www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH CCAW VOICE COIL
96 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6
Program power W 400
AES Power rating W 200
Sensitivity dB 96
Frequency range Hz 80 ÷ 5000
Voice coil diameter mm (in) 51 (2)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 102 x 60 x 7 (4.02 x 2.36 x 0.28)
Coil material   CCAW
Former material   Kapton
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6,1 (0.24)
Xmech mm (in) 10,1 (0.4)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 16,2 (0.64)
Driver displacement volume l (ft³) 0,654 (0.023)
Recommended Enclosure l (ft³) 15 (0.53)
Recommended Tuning Hz 81
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,1
Resonance frequency (Fs) Hz 85
Moving mass (Mms) g (oz) 26,5 (0.93)
Compliance (Cms) mm/N 0,131
Force factor (Bxl) N/A 14,45
Mechanical Q-factor (Qms)   4,8
Electrical Q-factor (Qes)   0,35
Total Q-factor (Qts)   0,32
Equivalent air volume (Vas) l (ft3) 9 (0.32)
Voice coil inductance (Le) mH 0,36
Diaphragm area (Sd) cm2 (in.2) 220 (34.1)
Reference efficiency (Eta 0)   1,55 %
Efficiency bandwidth product (EBP) Hz 243
SHIPPING INFORMATION
Net weight kg (lb) 2,3 (5.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 137 (10.2 x 10.2 x 5.4)
Multipack weight kg (lb) 2,9 (6.4)
