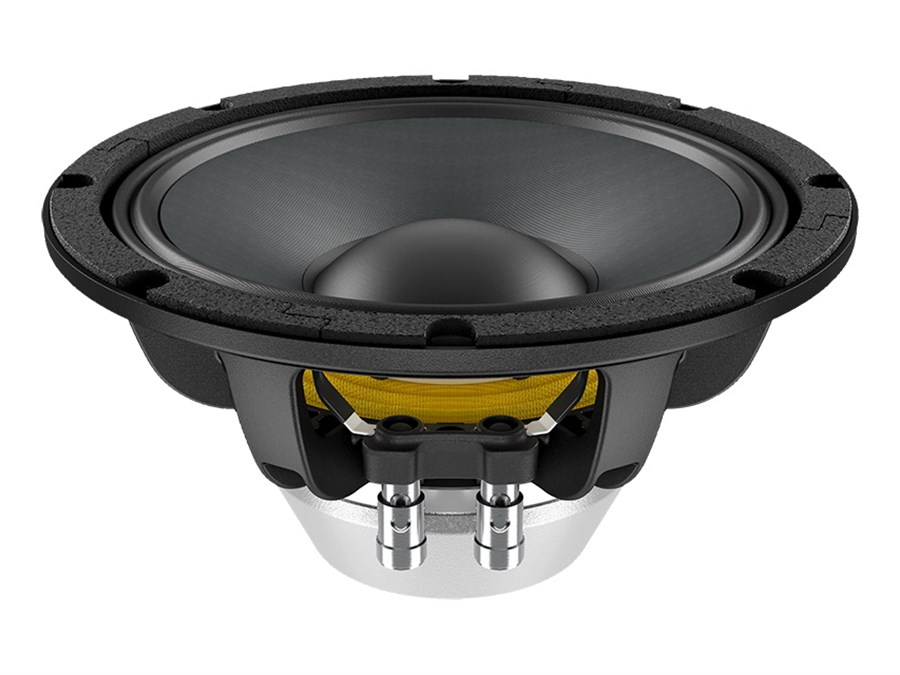

Lavoce WAN082.00 8 inç 400W Hoparlör
Lavoce WAN082.00 8 inç 400W Hoparlör
Lavoce WAN082.00 8 inç 400W Hoparlör

Lavoce WAN082.00 8 inç 400W Hoparlör

Marka : Lavoce
Fiyat : $282.00(KDV Dahil)

Lavoce WAN082.00 8 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAN082.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAN082.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH CCAW VOICE COIL
94 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6
Program power W 400
AES Power rating W 200
Sensitivity dB 94
Frequency range Hz 80 ÷ 3000
Voice coil diameter mm (in) 51 (2)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 51 x 9 (2 x 0.35)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 6,4 (0.25)
Xmech mm (in) 10,5 (0.41)
Gap height mm (in) 8,2 (0.32)
Voice coil winding height mm (in) 16,8 (0.66)
Driver displacement volume l (ft³) 0,6 (0.02)
Recommended Enclosure l (ft³) 15 (0.53)
Recommended Tuning Hz 80
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 82
Moving mass (Mms) g (oz) 23,4 (0.83)
Compliance (Cms) mm/N 0,159
Force factor (Bxl) N/A 10,29
Mechanical Q-factor (Qms)   5,06
Electrical Q-factor (Qes)   0,6
Total Q-factor (Qts)   0,52
Equivalent air volume (Vas) l (ft3) 11,62 (0.4)
Voice coil inductance (Le) mH 0,26
Diaphragm area (Sd) cm2 (in.2) 226,98 (35.2)
Reference efficiency (Eta 0)   1,04%
Efficiency bandwidth product (EBP) Hz 137
SHIPPING INFORMATION
Net weight kg (lb) 2,4 (5.3)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 137 (10.2 x 10.2 x 5.4)
Multipack weight kg (lb) 3,1 (6.9)
