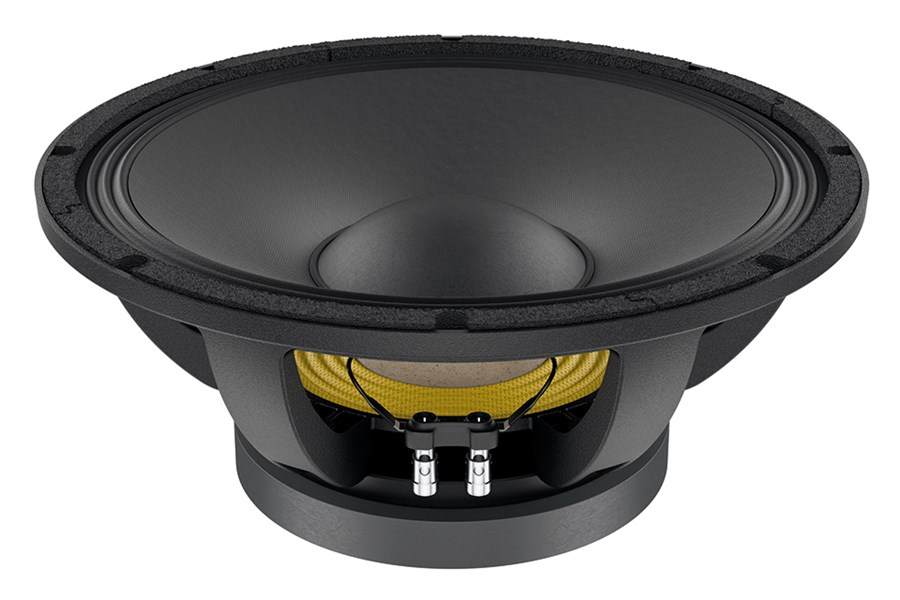

Lavoce WAF154.03 15 inç 1700W Hoparlör
Lavoce WAF154.03 15 inç 1700W Hoparlör
Lavoce WAF154.03 15 inç 1700W Hoparlör

Lavoce WAF154.03 15 inç 1700W Hoparlör

Marka : Lavoce
Fiyat : $532.80(KDV Dahil)

Lavoce WAF154.03 15 inç 1700W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF154.03 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir, en uygun

lavoce WAF154.03'ü www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH CCAW VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,4
Program power W 1700
AES Power rating W 850
Sensitivity dB 98
Frequency range Hz 40 ÷ 3000
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 220 x 110 x 25 (8.66 x 4.33 x 0.98)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 5,2 (0.2)
Xmech mm (in) 14,1 (0.56)
Gap height mm (in) 14,5 (0.57)
Voice coil winding height mm (in) 17,7 (0.7)
Driver displacement volume l (ft³) 5,2 (0.184)
Recommended Enclosure l (ft³) 99,6 (3.52)
Recommended Tuning Hz 65
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,0
Resonance frequency (Fs) Hz 40
Moving mass (Mms) g (oz) 113,3 (3.99)
Compliance (Cms) mm/N 0,141
Force factor (Bxl) N/A 21,83
Mechanical Q-factor (Qms)   10,86
Electrical Q-factor (Qes)   0,36
Total Q-factor (Qts)   0,35
Equivalent air volume (Vas) l (ft3) 155,29 (5.48)
Voice coil inductance (Le) mH 0,36
Diaphragm area (Sd) cm2 (in.2) 881,41 (136.6)
Reference efficiency (Eta 0)   2,64 %
Efficiency bandwidth product (EBP) Hz 111
SHIPPING INFORMATION
Net weight kg (lb) 15,3 (24.9)
Multipack size W x D x H mm x mm x mm (in x in x in) 455 x 455 x 220 (17.9 x 17.9 x 8.7)
Multipack weight kg (lb) 12,6 (27.8)
