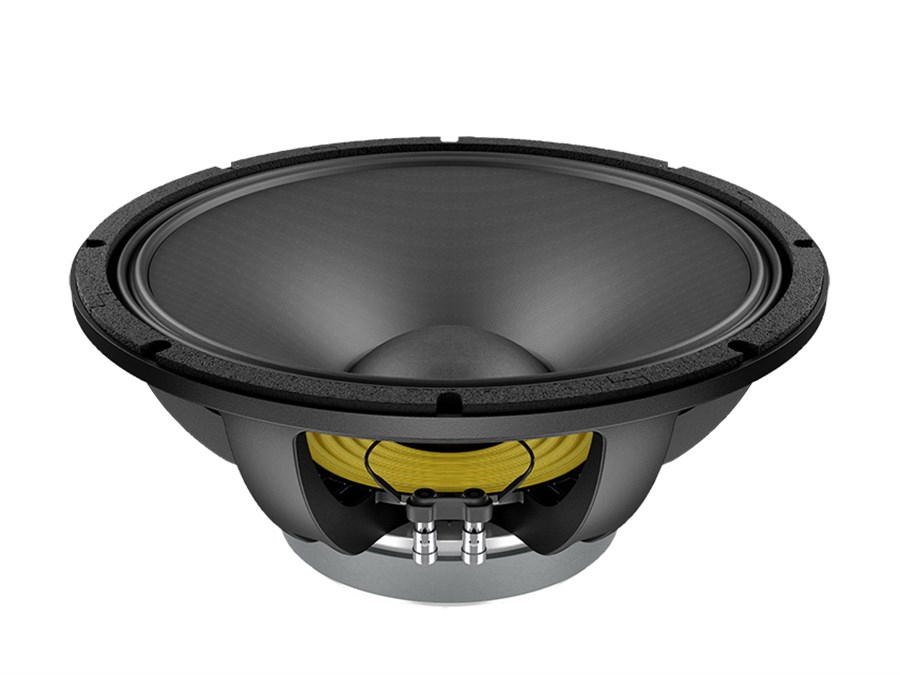

Lavoce WAF153.00 15 inç 1000W Hoparlör
Lavoce WAF153.00 15 inç 1000W Hoparlör
Lavoce WAF153.00 15 inç 1000W Hoparlör

Lavoce WAF153.00 15 inç 1000W Hoparlör

Marka : Lavoce
Fiyat : $420.00(KDV Dahil)

Lavoce WAF153.00 15 inç 1000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF153.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF153.00'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH CCAW VOICE COIL
99 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,5
Program power W 1000
AES Power rating W 500
Sensitivity dB 100
Frequency range Hz 40 ÷ 3000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 190 x 95 x 25 (7.48 x 3.74 x 0.98)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 7 (0.28)
Xmech mm (in) 12.5 (0.49)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 4,8 (0.17)
Recommended Enclosure l (ft³) 102 (3.60)
Recommended Tuning Hz 50
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,7
Resonance frequency (Fs) Hz 43
Moving mass (Mms) g (oz) 99,2 (3.5)
Compliance (Cms) mm/N 0,141
Force factor (Bxl) N/A 17,88
Mechanical Q-factor (Qms)   9,00
Electrical Q-factor (Qes)   0,39
Total Q-factor (Qts)   0,37
Equivalent air volume (Vas) l (ft3) 146,3 (5.17)
Voice coil inductance (Le) mH 0,91
Diaphragm area (Sd) cm2 (in.2) 855 (132.53)
Reference efficiency (Eta 0)   2,78%
Efficiency bandwidth product (EBP) Hz 50
SHIPPING INFORMATION
Net weight kg (lb) 9,40 (20.7)
Multipack size W x D x H mm x mm x mm (in x in x in) 452 x 452 x 204 (17.8 x 17.8 x 8)
Multipack weight kg (lb) 11,6 (25.5)
