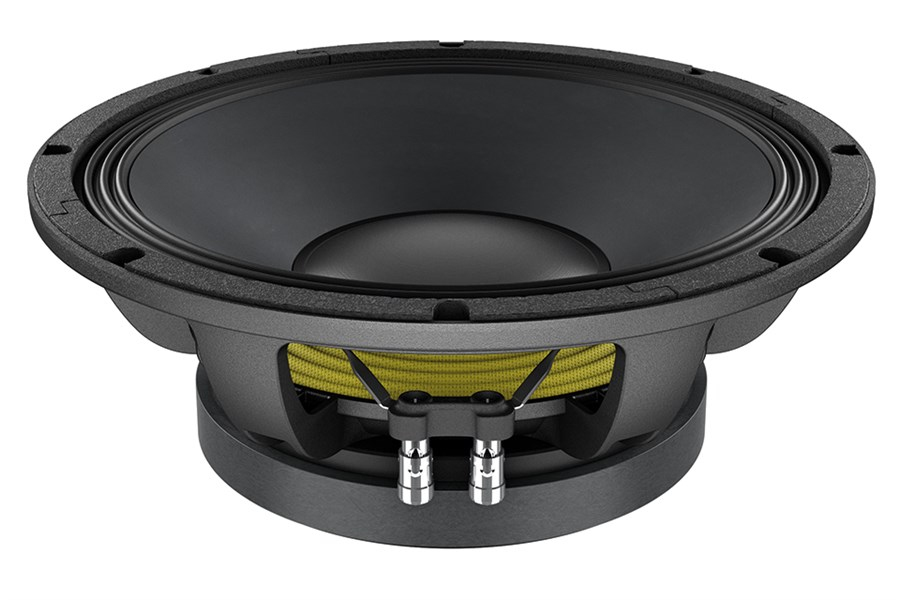

Lavoce WAF124.02 12 inç 1200W Hoparlör
Lavoce WAF124.02 12 inç 1200W Hoparlör
Lavoce WAF124.02 12 inç 1200W Hoparlör

Lavoce WAF124.02 12 inç 1200W Hoparlör

Marka : Lavoce
Fiyat : $475.20(KDV Dahil)

Lavoce WAF124.02 12 inç 1200W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF124.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF124.02'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH CCAW VOICE COIL
96,5 dB/SPL SENSI

GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,6
Program power W 1200
AES Power rating W 600
Sensitivity dB 96,5
Frequency range Hz 50 ÷ 2500
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 200 x 110 x 22 (7.87 x 4.33 x 0.87)
Coil material   CCAW
Former material   Polyimide
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 9,1 (0.36)
Xmech mm (in) 14,6 (0.57)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 23,2 (0.91)
Driver displacement volume l (ft³) 2,93 (0.104)
Recommended Enclosure l (ft³) 56 (1.98)
Recommended Tuning Hz 65
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,9
Resonance frequency (Fs) Hz 49
Moving mass (Mms) g (oz) 79 (2.79)
Compliance (Cms) mm/N 0,132
Force factor (Bxl) N/A 18,22
Mechanical Q-factor (Qms)   4,31
Electrical Q-factor (Qes)   0,36
Total Q-factor (Qts)   0,33
Equivalent air volume (Vas) l (ft3) 52,65 (1.86)
Voice coil inductance (Le) mH 1,03
Diaphragm area (Sd) cm2 (in.2) 531 (82.3)
Reference efficiency (Eta 0)   1,67%
Efficiency bandwidth product (EBP)  Hz 136
SHIPPING INFORMATION
Net weight kg (lb) 11,7 (25.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 179 (14 x 14 x 7)
Multipack weight kg (lb) 13,1 (28.9)
