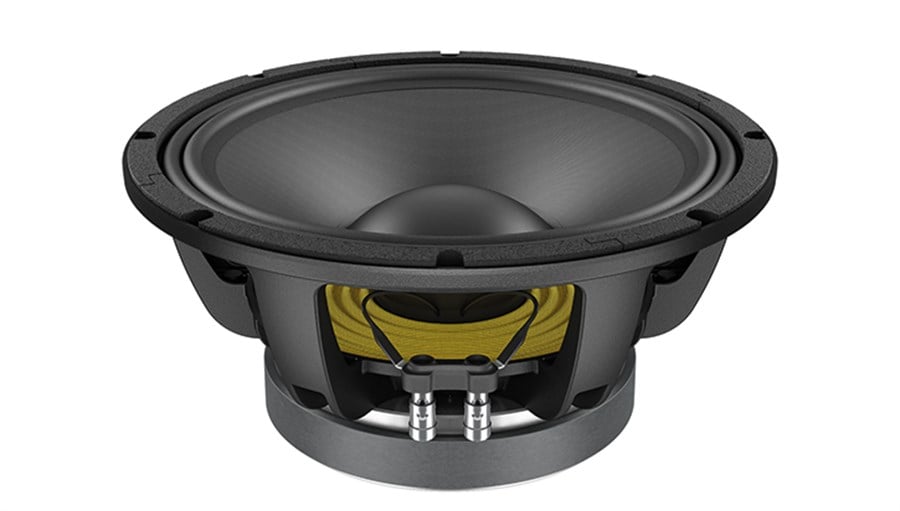

Lavoce WAF123.01 12 inç 1000W Hoparlör
Lavoce WAF123.01 12 inç 1000W Hoparlör
Lavoce WAF123.01 12 inç 1000W Hoparlör

Lavoce WAF123.01 12 inç 1000W Hoparlör

Marka : Lavoce
Fiyat : $362.40(KDV Dahil)

Lavoce WAF123.01 12 inç 1000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF123.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF123.01'i www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH CCAW VOICE COIL
98,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,6
Program power W 1000
AES Power rating W 500
Sensitivity dB 98,5
Frequency range Hz 65 ÷ 3000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 190 x 95 x 25 (7.48 x 3.74 x 0.98)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 7,5 (0.3)
Xmech mm (in) 13 (0.51)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 20 (0.79)
Driver displacement volume l (ft³) 2,8 (0.1)
Recommended Enclosure l (ft³) 61,7 (2.18)
Recommended Tuning Hz 70
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,8
Resonance frequency (Fs) Hz 65
Moving mass (Mms) g (oz) 63 (2.23)
Compliance (Cms) mm/N 0,096
Force factor (Bxl) N/A 17,08
Mechanical Q-factor (Qms)   6,32
Electrical Q-factor (Qes)   0,42
Total Q-factor (Qts)   0,4
Equivalent air volume (Vas) l (ft3) 41,9 (1.48)
Voice coil inductance (Le) mH 0,75
Diaphragm area (Sd) cm2 (in.2) 555,7 (86,1)
Reference efficiency (Eta 0)   2,57 %
Efficiency bandwidth product (EBP)  Hz 155
SHIPPING INFORMATION
Net weight kg (lb) 8,6 (18.9)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 192 (14 x 14 x 7.6)
Multipack weight kg (lb) 10,2 (22.5)
