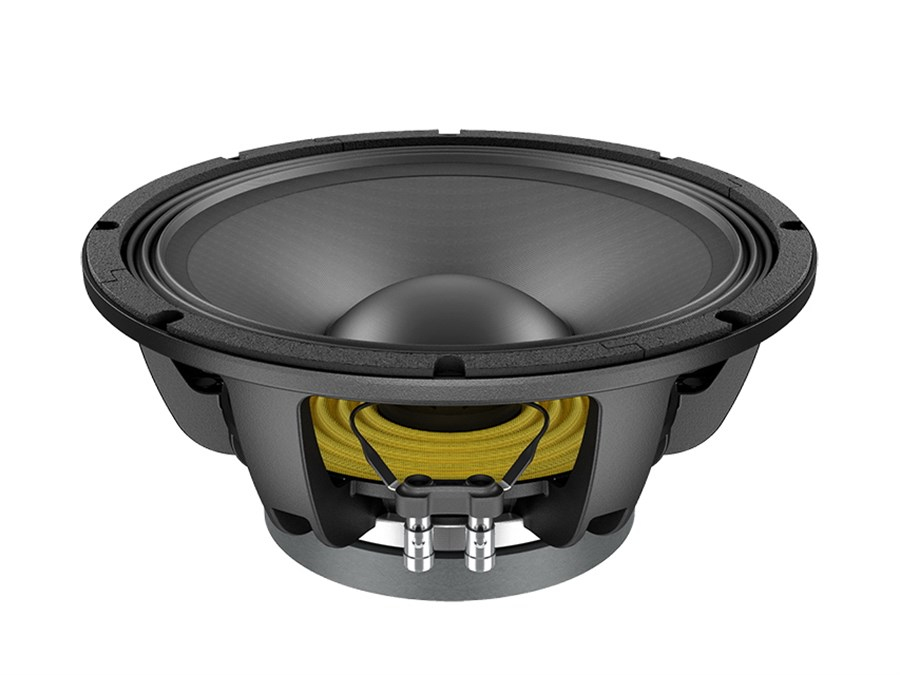

Lavoce WAF122.50 12 inç 700W Hoparlör
Lavoce WAF122.50 12 inç 700W Hoparlör
Lavoce WAF122.50 12 inç 700W Hoparlör

Lavoce WAF122.50 12 inç 700W Hoparlör

Marka : Lavoce
Fiyat : $306.00(KDV Dahil)

Lavoce WAF122.50 12 inç 700W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF122.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF122.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH CCAW VOICE COIL
97,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,8
Program power W 700
AES Power rating W 350
Sensitivity dB 97,5
Frequency range Hz 60 ÷ 3000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 170 x 75 x 20 (6.69 x 2.95 x 0.79)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6 (0.24)
Xmech mm (in) 11,5 (0.45)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 17 (0.67)
Driver displacement volume l (ft³) 2,6 (0.09)
Recommended Enclosure l (ft³) 50 (1.77)
Recommended Tuning Hz 65
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 59
Moving mass (Mms) g (oz) 66,7 (2.35)
Compliance (Cms) mm/N 0,108
Force factor (Bxl) N/A 19,06
Mechanical Q-factor (Qms)   5,88
Electrical Q-factor (Qes)   0,39
Total Q-factor (Qts)   19,06
Equivalent air volume (Vas) l (ft3) 47 (1.66)
Voice coil inductance (Le) mH 0,88
Diaphragm area (Sd) cm2 (in.2) 555,7 (86,1)
Reference efficiency (Eta 0)   2,42%
Efficiency bandwidth product (EBP)  Hz 151
SHIPPING INFORMATION
Net weight kg (lb) 6,3 (13.9)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 X 356 X 192 (14 X 14 X 7.6)
Multipack weight kg (lb) 7,8 (17.1)
