Marka : Lavoce
Fiyat : $253.20(KDV Dahil)

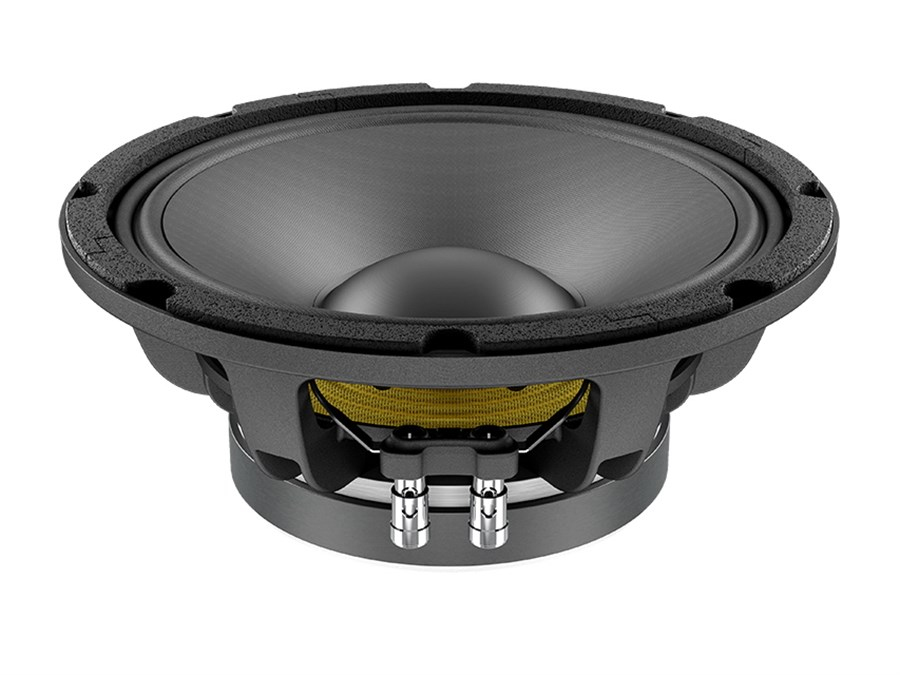

Lavoce WAF102.50A 10 inç 500W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF102.50A fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF102.50A'yı www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH EDGEWOUND CCA VOICE COIL
98,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,5
Program power W 500
AES Power rating W 250
Sensitivity dB 98,5
Frequency range Hz 70 ÷ 4000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 155 x 80 x 20 (6.1 x 3.15 x 0.79)
Coil material   Edgewound CCA
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 5 (0.2)
Xmech mm (in) 9 (0.35)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 14 (0.55)
Driver displacement volume l (ft³) 1,5 (0.05)
Recommended Enclosure l (ft³) 39 (1.38)
Recommended Tuning Hz 70
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,5
Resonance frequency (Fs) Hz 71
Moving mass (Mms) g (oz) 34,6 (1.22)
Compliance (Cms) mm/N 0,142
Force factor (Bxl) N/A 16,1
Mechanical Q-factor (Qms)   5,371
Electrical Q-factor (Qes)   0,33
Total Q-factor (Qts)   0,31
Equivalent air volume (Vas) l (ft3) 29,09 (1.03)
Voice coil inductance (Le) mH 0,82
Diaphragm area (Sd) cm2 (in.2) 380,1 (58.9)
Reference efficiency (Eta 0)   3,10 %
Efficiency bandwidth product (EBP)  Hz 215
SHIPPING INFORMATION
Net weight kg (lb) 4,7 (10.2)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 5,6 (12.3)
