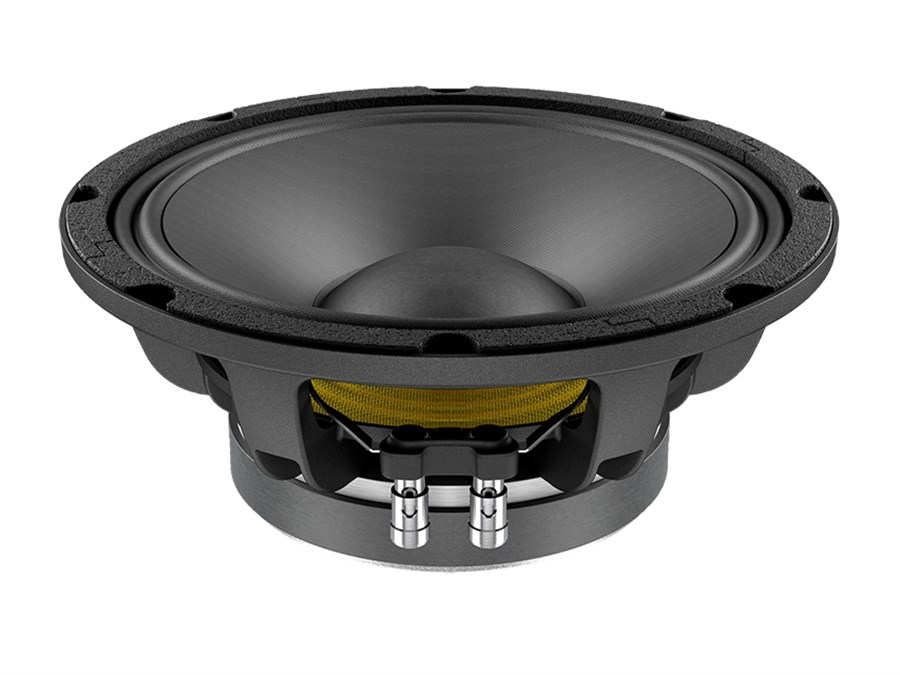

Lavoce WAF102.50 10 inç 500W Hoparlör
Lavoce WAF102.50 10 inç 500W Hoparlör
Lavoce WAF102.50 10 inç 500W Hoparlör

Lavoce WAF102.50 10 inç 500W Hoparlör

Marka : Lavoce
Fiyat : $230.40(KDV Dahil)

Lavoce WAF102.50 10 inç 500W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF102.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF102.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH CCAW VOICE COIL
97 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,7
Program power W 500
AES Power rating W 250
Sensitivity dB 97
Frequency range Hz 70 ÷ 4000
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 156 x 80 x 20 (6.14 x 3.15 x 0.79)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Proof Treated Paper
Surround material   Polycotton
Xmax mm (in) 5,1 (0.2)
Xmech mm (in) 9,1 (0.36)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 14,2 (0.56)
Driver displacement volume l (ft³) 1,6 (0.06)
Recommended Enclosure l (ft³) 36 (1.27)
Recommended Tuning Hz 75
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 74
Moving mass (Mms) g (oz) 25,4 (0.9)
Compliance (Cms) mm/N 0,136
Force factor (Bxl) N/A 14,62
Mechanical Q-factor (Qms)   4,01
Electrical Q-factor (Qes)   0,12
Total Q-factor (Qts)   0,38
Equivalent air volume (Vas) l (ft3) 27,91 (0.99)
Voice coil inductance (Le) mH 0,68
Diaphragm area (Sd) cm2 (in.2) 380,1 (58.9)
Reference efficiency (Eta 0)   2,62 %
Efficiency bandwidth product (EBP)  Hz 617
SHIPPING INFORMATION
Net weight kg (lb) 4,8 (10.5)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 5,7 (12.5)
