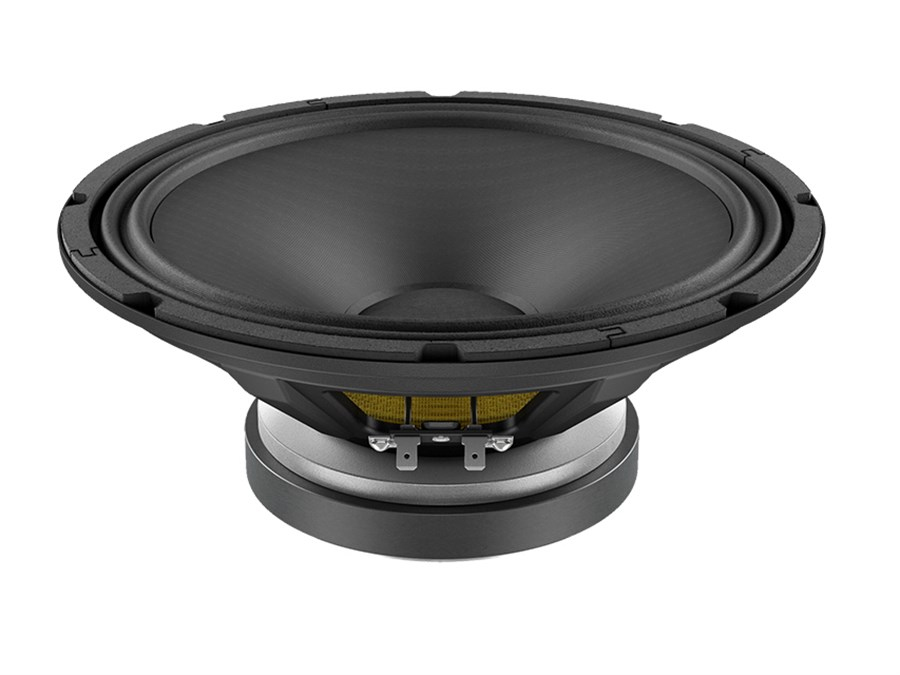

Lavoce WSF102.00 10 inç 350W Hoparlör
Lavoce WSF102.00 10 inç 350W Hoparlör
Lavoce WSF102.00 10 inç 350W Hoparlör

Lavoce WSF102.00 10 inç 350W Hoparlör

Marka : Lavoce
Fiyat : $156.00(KDV Dahil)

Lavoce WSF102.00 10 inç 350W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WSF102.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WSF102.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH CCAW VOICE COIL
95 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,9
Program power W 350
AES Power rating W 175
Sensitivity dB 96,5
Frequency range Hz 60 ÷ 4000
Voice coil diameter mm (in) 51 (2)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 140 x 60 x 17 (5.51 x 2.36 x 0.67)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 5,3 (0.21)
Xmech mm (in) 9,3 (0.37)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 14,6 (0.57)
Driver displacement volume l (ft³) 1,2 (0.04)
Recommended Enclosure l (ft³) 25,7 (0.91)
Recommended Tuning Hz 70
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 65
Moving mass (Mms) g (oz) 30,4 (1.07)
Compliance (Cms) mm/N 0,196
Force factor (Bxl) N/A 11,62
Mechanical Q-factor (Qms)   5,73
Electrical Q-factor (Qes)   0,48
Total Q-factor (Qts)   0,45
Equivalent air volume (Vas) l (ft3) 34,62 (1.22)
Voice coil inductance (Le) mH 0,5
Diaphragm area (Sd) cm2 (in.2) 353 (54.7)
Reference efficiency (Eta 0)   1,91 %
Efficiency bandwidth product (EBP)  Hz 135
SHIPPING INFORMATION
Net weight kg (lb) 3,2 (7)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 4,1 (9)
