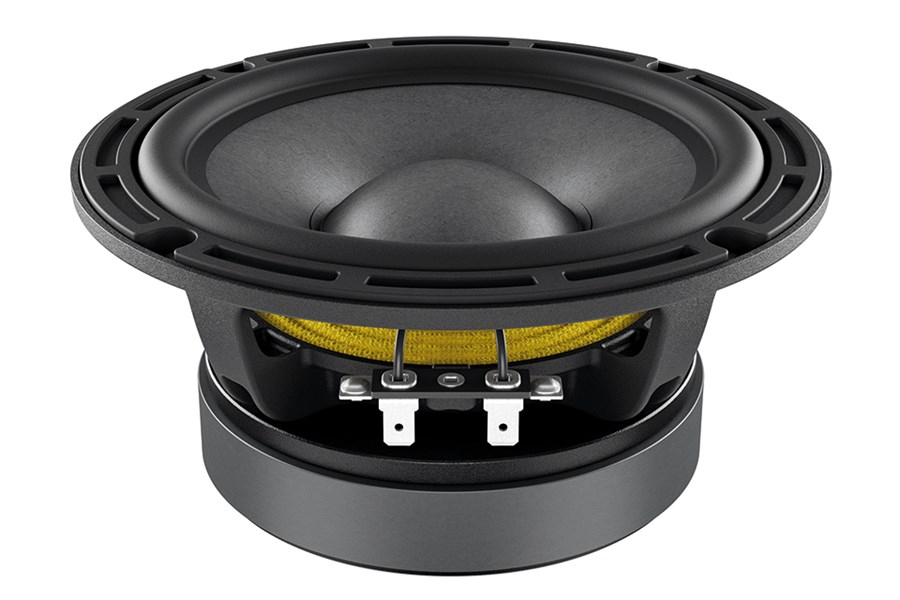

Lavoce WAF061.80 6.5 inç 300W Hoparlör
Lavoce WAF061.80 6.5 inç 300W Hoparlör
Lavoce WAF061.80 6.5 inç 300W Hoparlör

Lavoce WAF061.80 6.5 inç 300W Hoparlör

Marka : Lavoce
Fiyat : $126.00(KDV Dahil)

Lavoce WAF061.80 6.5 inç 300W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce WAF061.80 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce WAF061.80'i www.medumuzikmarket.com'dan satın alabilirsiniz.

1.5 INCH CCAW VOICE COIL
94 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 165 (6.5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,4
Program power W 300
AES Power rating W 150
Sensitivity dB 91
Frequency range Hz 65 ÷ 5000
Voice coil diameter mm (in) 45 (1.8)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 120 x 60 x 20 (4.72 x 2.36 x 0.79)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 4,8 (0.19)
Xmech mm (in) 7,3 (0.29)
Gap height mm (in) 6 (0.24)
Voice coil winding height mm (in) 12,6 (0.5)
Driver displacement volume l (ft³) 0,8 (0.03)
Recommended Enclosure l (ft³) 10,2 (0.36)
Recommended Tuning Hz 80
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,7
Resonance frequency (Fs) Hz 65
Moving mass (Mms) g (oz) 20,1 (0.71)
Compliance (Cms) mm/N 0,30
Force factor (Bxl) N/A 9,46
Mechanical Q-factor (Qms)   8,82
Electrical Q-factor (Qes)   0,44
Total Q-factor (Qts)   0,34
Equivalent air volume (Vas) l (ft3) 7,57 (0.27)
Voice coil inductance (Le) mH 0,34
Diaphragm area (Sd) cm2 (in.2) 138,8 (20.9)
Reference efficiency (Eta 0)   0,47%
Efficiency bandwidth product (EBP) Hz 148
SHIPPING INFORMATION
Net weight kg (lb) 2,3 (5)
Multipack size W x D x H mm x mm x mm (in x in x in) 410 x 370 x 231 (16.1 x 14.6 x 9.1)
Multipack weight kg (lb) 19,5 (42.9)
