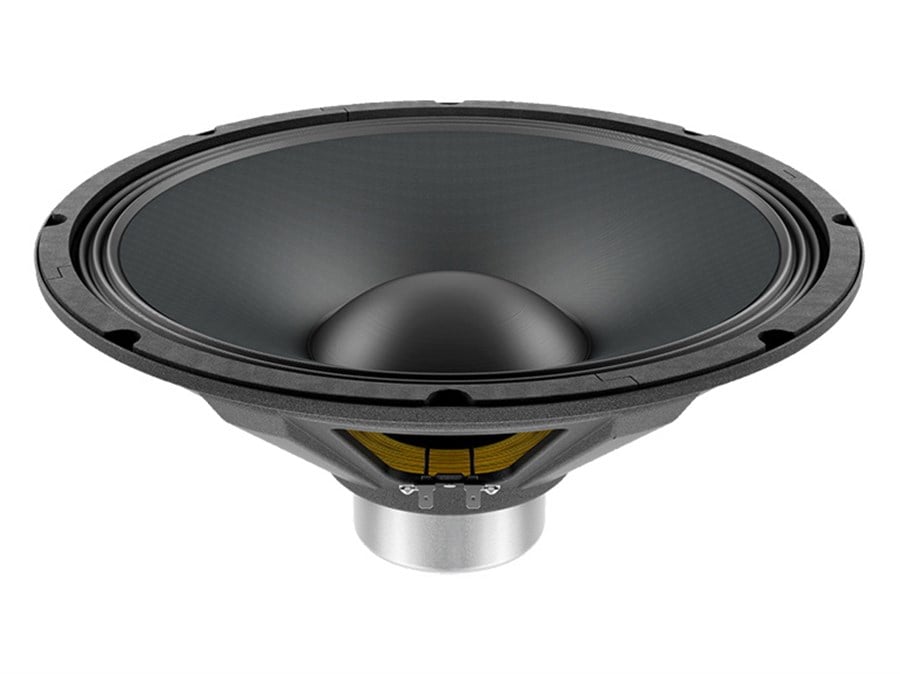

Lavoce SSN153.00 15 inç 800W Hoparlör
Lavoce SSN153.00 15 inç 800W Hoparlör
Lavoce SSN153.00 15 inç 800W Hoparlör

Lavoce SSN153.00 15 inç 800W Hoparlör

Marka : Lavoce
Fiyat : $502.80(KDV Dahil)

Lavoce SSN153.00 15 inç 800W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSN153.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSN153.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5.8
Program power W 800
AES Power rating W 400
Sensitivity dB 98
Frequency range Hz 50 ÷ 2000
Voice coil diameter mm (in) 75 (3)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 74 x 9 (2.91 x 0.35)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6,7 (0.26)
Xmech mm (in) 12,6 (0.5)
Gap height mm (in) 10,5 (0.41)
Voice coil winding height mm (in) 18,6 (0.73)
Driver displacement volume l (ft³) 4,6 (0.16)
Recommended Enclosure l (ft³) 93,4 (3.3)
Recommended Tuning Hz 53
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5.1
Resonance frequency (Fs) Hz 51
Moving mass (Mms) g (oz) 112 (3.95)
Compliance (Cms) mm/N 0,088
Force factor (Bxl) N/A 19,19
Mechanical Q-factor (Qms)   8,09
Electrical Q-factor (Qes)   0,49
Total Q-factor (Qts)   0,47
Equivalent air volume (Vas) l (ft3) 91 (3.21)
Voice coil inductance (Le) mH 0.99
Diaphragm area (Sd) cm2 (in.2) 855,3 (132.6)
Reference efficiency (Eta 0)   2,31 %
Efficiency bandwidth product (EBP) Hz 104
SHIPPING INFORMATION
Net weight kg (lb) 3,5 (7.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x 438 x 212 (17.2 x 17.2 x 8.3)
Multipack weight kg (lb) 5,7 (12.6)
