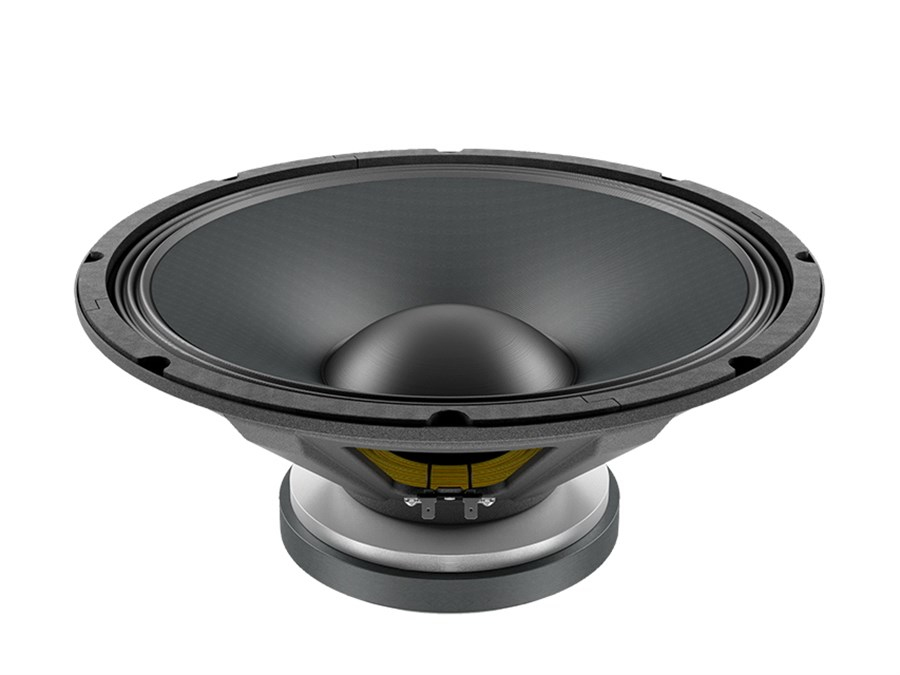

Lavoce SSF153.00 15 inç 800W Hoparlör
Lavoce SSF153.00 15 inç 800W Hoparlör
Lavoce SSF153.00 15 inç 800W Hoparlör

Lavoce SSF153.00 15 inç 800W Hoparlör

Marka : Lavoce
Fiyat : $339.28(KDV Dahil)

Lavoce SSF153.00 15 inç 800W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF153.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF153.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS

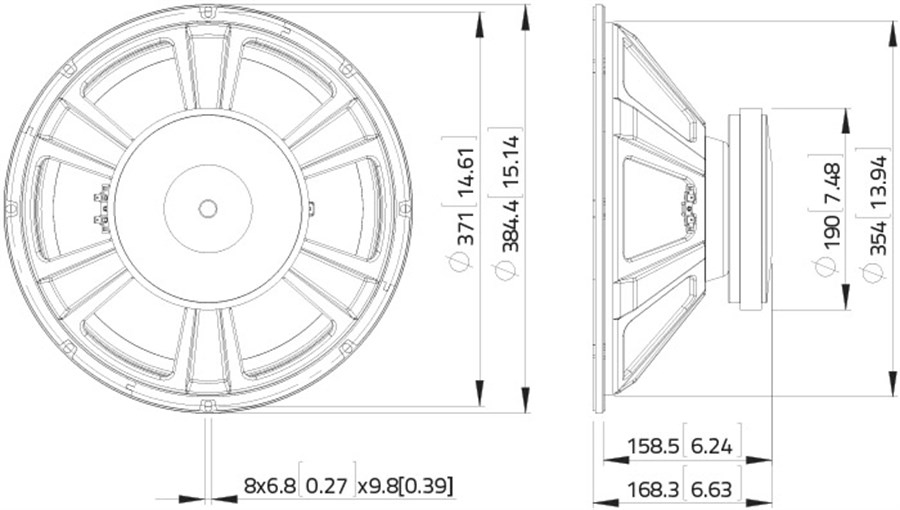

Nominal diameter mm (in) 380 (15)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,0
Program power W 800
AES Power rating W 400
Sensitivity dB 98
Frequency range Hz 45 ÷ 2000
Voice coil diameter mm (in) 75 (3)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 190 x 85 x 20 (7.48 x 3.35 x 0.79)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6,7 (0.26)
Xmech mm (in) 12,6 (0.5)
Gap height mm (in) 10,5 (0.41)
Voice coil winding height mm (in) 18,6 (0.73)
Driver displacement volume l (ft³) 4,1 (0.14)
Recommended Enclosure l (ft³) 64,3 (3.33)
Recommended Tuning Hz 52
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,1
Resonance frequency (Fs) Hz 47
Moving mass (Mms) g (oz) 103,7 (3.66)
Compliance (Cms) mm/N 0,113
Force factor (Bxl) N/A 18,65
Mechanical Q-factor (Qms)   5,19
Electrical Q-factor (Qes)   0,44
Total Q-factor (Qts)   0,41
Equivalent air volume (Vas) l (ft3) 116,92 (4.13)
Voice coil inductance (Le) mH 1,06
Diaphragm area (Sd) cm2 (in.2) 855 (132.5)
Reference efficiency (Eta 0)   2,56%
Efficiency bandwidth product (EBP) Hz 106
SHIPPING INFORMATION
Net weight kg (lb) 8,5 (18.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 438 x438 x 212 (17.2 x 17.2 x 8.3)
Multipack weight kg (lb) 10,7 (23.5)
