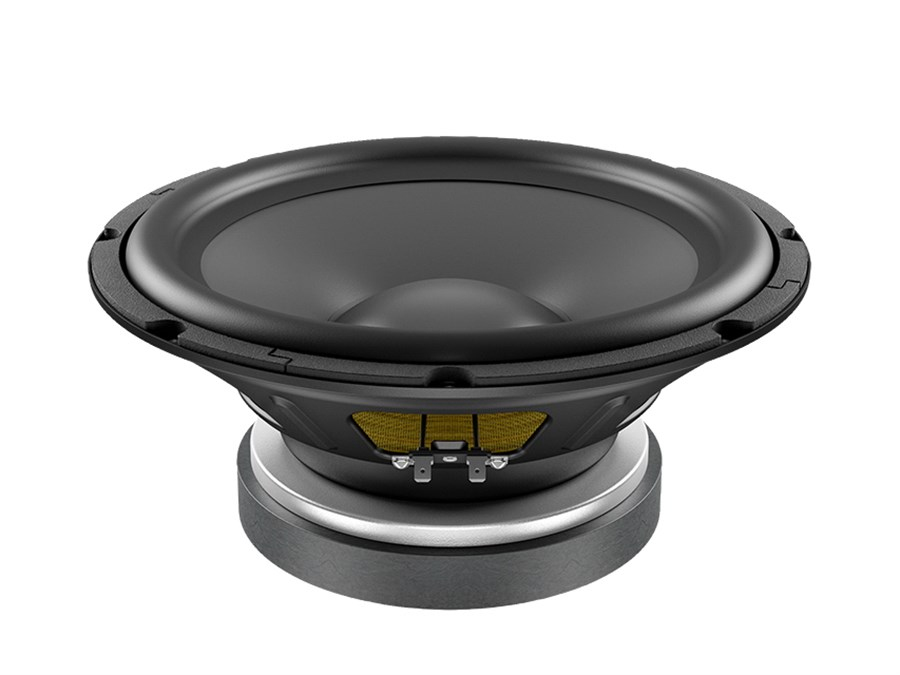

Lavoce SSF122.50L 12 inç 800W Hoparlör
Lavoce SSF122.50L 12 inç 800W Hoparlör
Lavoce SSF122.50L 12 inç 800W Hoparlör

Lavoce SSF122.50L 12 inç 800W Hoparlör

Marka : Lavoce
Fiyat : $337.20(KDV Dahil)

Lavoce SSF122.50L 12 inç 800W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF122.50L fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF122.50L'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH CCAW VOICE COIL
93 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,5
Program power W 800
AES Power rating W 400
Sensitivity dB 93
Frequency range Hz 40 ÷ 500
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 193 x 80 x 25 (7.6 x 3.15 x 0.98)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 11,5 (0.45)
Xmech mm (in) 17 (0.67)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 28 (1.1)
Driver displacement volume l (ft³) 2,9 (0.1)
Recommended Enclosure l (ft³) 46,2 (1.63)
Recommended Tuning Hz 46
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,4
Resonance frequency (Fs) Hz 41
Moving mass (Mms) g (oz) 98,8 (3.49)
Compliance (Cms) mm/N 0,154
Force factor (Bxl) N/A 17,1
Mechanical Q-factor (Qms)   3,22
Electrical Q-factor (Qes)   0,47
Total Q-factor (Qts)   0,41
Equivalent air volume (Vas) l (ft3) 61,44 (2.17)
Voice coil inductance (Le) mH 1,38
Diaphragm area (Sd) cm2 (in.2) 530,9 (82.3)
Reference efficiency (Eta 0)   0,85%
Efficiency bandwidth product (EBP)  Hz 87
SHIPPING INFORMATION
Net weight kg (lb) 8,7 (19.2)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 X 356 X 192 (14 X 14 X 7.6)
Multipack weight kg (lb) 10,2 (22.4)
