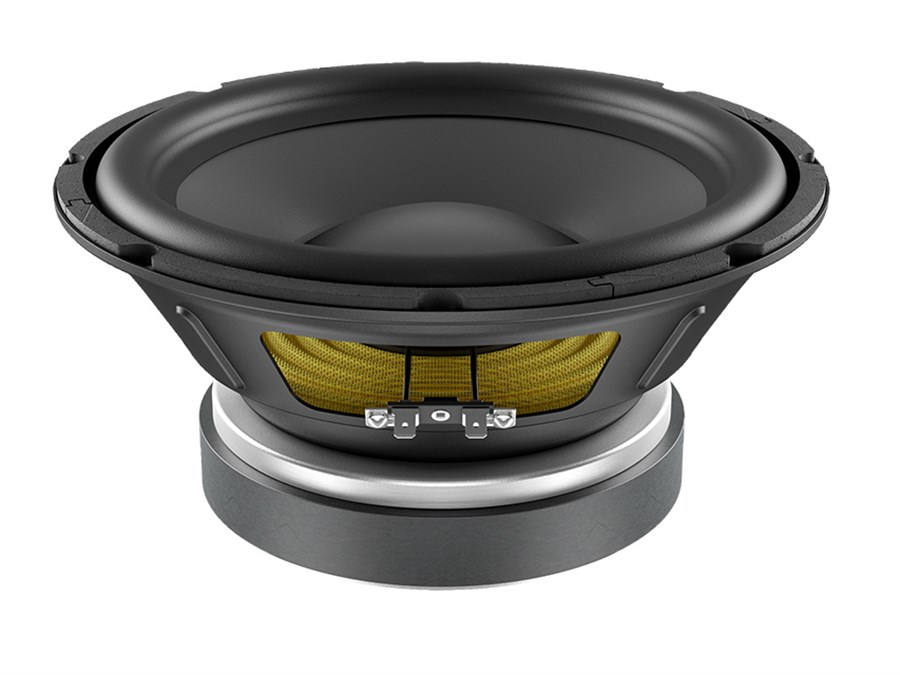

Lavoce SSF102.50L 10 inç 800W Hoparlör
Lavoce SSF102.50L 10 inç 800W Hoparlör
Lavoce SSF102.50L 10 inç 800W Hoparlör

Lavoce SSF102.50L 10 inç 800W Hoparlör

Marka : Lavoce
Fiyat : $263.48(KDV Dahil)

Lavoce SSF102.50L 10 inç 800W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF102.50L fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF102.50L'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2.5 INCH CCAW VOICE COIL
91,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,5
Program power W 800
AES Power rating W 400
Sensitivity dB 91,5
Frequency range Hz 50 ÷ 500
Voice coil diameter mm (in) 65 (2.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 170 x 80 x 25 (6.69 x 3.15 x 0.98)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 11,5 (0.45)
Xmech mm (in) 17 (0.67)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 28 (1.1)
Driver displacement volume l (ft³) 1,6 (0.06)
Recommended Enclosure l (ft³) 29,7 (1.05)
Recommended Tuning Hz 55
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,5
Resonance frequency (Fs) Hz 50
Moving mass (Mms) g (oz) 75,02 (2.65)
Compliance (Cms) mm/N 0,137
Force factor (Bxl) N/A 15,54
Mechanical Q-factor (Qms)   4,67
Electrical Q-factor (Qes)   0,53
Total Q-factor (Qts)   0,48
Equivalent air volume (Vas) l (ft3) 25,62 (0.9)
Voice coil inductance (Le) mH 1,22
Diaphragm area (Sd) cm2 (in.2) 363,05 (56.3)
Reference efficiency (Eta 0)   0,57%
Efficiency bandwidth product (EBP)  Hz 94
SHIPPING INFORMATION
Net weight kg (lb) 7,1 (15.6)
Multipack size W x D x H mm x mm x mm (in x in x in) 308 x 308 x 196 (12.1 x 12.1 x 7.7)
Multipack weight kg (lb) 8,1 (17.8)
