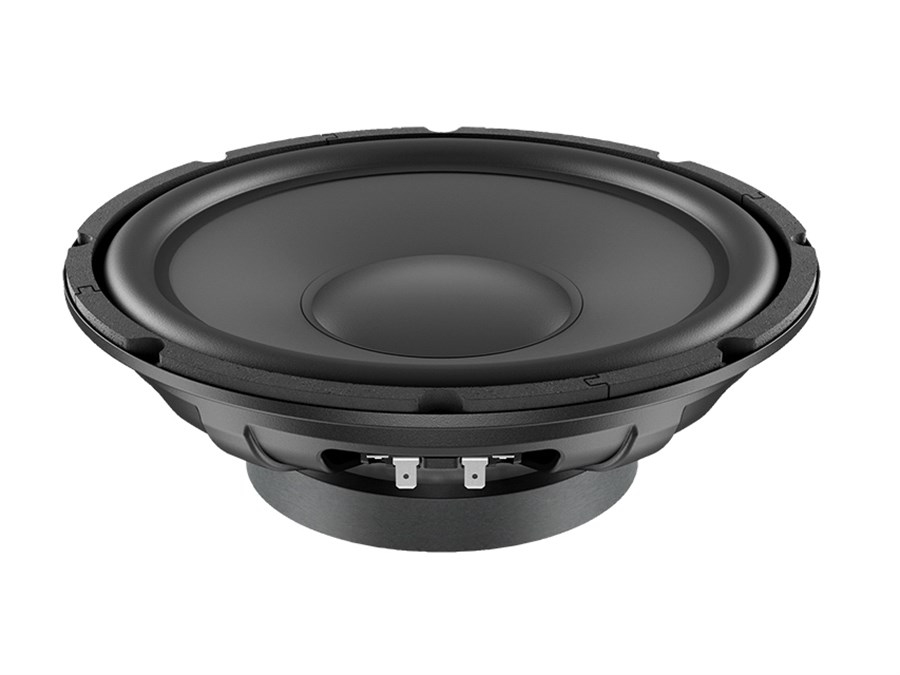

Lavoce SSF102.40 10 inç 500W Hoparlör
Lavoce SSF102.40 10 inç 500W Hoparlör
Lavoce SSF102.40 10 inç 500W Hoparlör

Lavoce SSF102.40 10 inç 500W Hoparlör

Marka : Lavoce
Fiyat : $160.01(KDV Dahil)

Lavoce SSF102.40 10 inç 500W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF102.40 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF102.40'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

2.4 INCH CCAW VOICE COIL
86 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,7
Program power W 500
AES Power rating W 250
Sensitivity dB 86
Frequency range Hz 40 ÷ 500
Voice coil diameter mm (in) 61 (2.4)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 140 x 70 x 20 (5.51 x 2.76 x 0.79)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 8,3 (0.33)
Xmech mm (in) 12,3 (0.48)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 20,5 (0.81)
Driver displacement volume l (ft³) 1,5 (0.3)
Recommended Enclosure l (ft³) 37,7 (1.50)
Recommended Tuning Hz 45
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,7
Resonance frequency (Fs) Hz 39
Moving mass (Mms) g (oz) 73,4 (2.59)
Compliance (Cms) mm/N 0.228
Force factor (Bxl) N/A 14,01
Mechanical Q-factor (Qms)   9,96
Electrical Q-factor (Qes)   0.61
Total Q-factor (Qts)   0.57
Equivalent air volume (Vas) l (ft3) 42,55 (1.5)
Voice coil inductance (Le) mH 2,42
Diaphragm area (Sd) cm2 (in.2) 363,1 (56.3)
Reference efficiency (Eta 0)   0,39 %
Efficiency bandwidth product (EBP)  Hz 64
SHIPPING INFORMATION
Net weight kg (lb) 3,5 (7.6)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 126 (11.8 x 11.8 x 5)
Multipack weight kg (lb) 4,3 (9.4)
