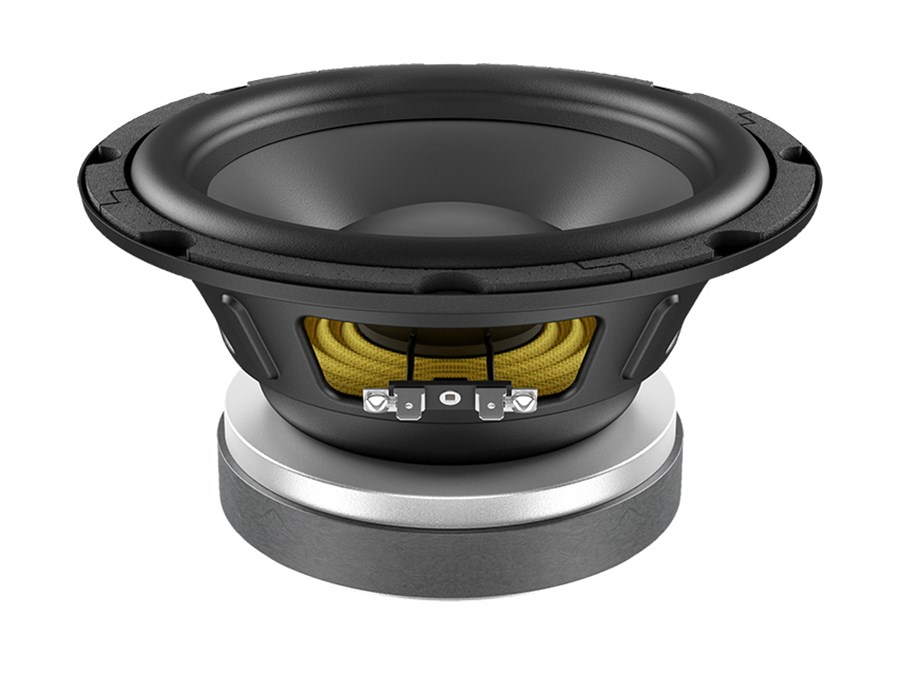

Lavoce SSF082.00L 8 inç 700W Hoparlör
Lavoce SSF082.00L 8 inç 700W Hoparlör
Lavoce SSF082.00L 8 inç 700W Hoparlör

Lavoce SSF082.00L 8 inç 700W Hoparlör

Marka : Lavoce
Fiyat : $200.40(KDV Dahil)

Lavoce SSF082.00L 8 inç 700W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF082.00L fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF082.00L'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH CCAW VOICE COIL
88 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,6
Program power W 700
AES Power rating W 350
Sensitivity dB 88
Frequency range Hz 50 ÷ 500
Voice coil diameter mm (in) 51 (2)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 140 x 62 x 20 (5.51 x 2.44 x 0.79)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 9 (0.35)
Xmech mm (in) 14,5 (0.57)
Gap height mm (in) 10 (0.39)
Voice coil winding height mm (in) 23 (0.91)
Driver displacement volume l (ft³) 1 (0.04)
Recommended Enclosure l (ft³) 25,5 (0.90)
Recommended Tuning Hz 60
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 5,2
Moving mass (Mms) g (oz) 66,3 (2.34)
Compliance (Cms) mm/N 0,144
Force factor (Bxl) N/A 14,67
Mechanical Q-factor (Qms)   9,94
Electrical Q-factor (Qes)   0,52
Total Q-factor (Qts)   0,49
Equivalent air volume (Vas) l (ft3) 9,52 (0.34)
Voice coil inductance (Le) mH 2,51
Diaphragm area (Sd) cm2 (in.2) 216,42 (33.5)
Reference efficiency (Eta 0)   0,24 %
Efficiency bandwidth product (EBP)  Hz 100
SHIPPING INFORMATION
Net weight kg (lb) 4,1 (9)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 166 (10.2 x 10.2 x 6.5)
Multipack weight kg (lb) 4,8 (10.5)
