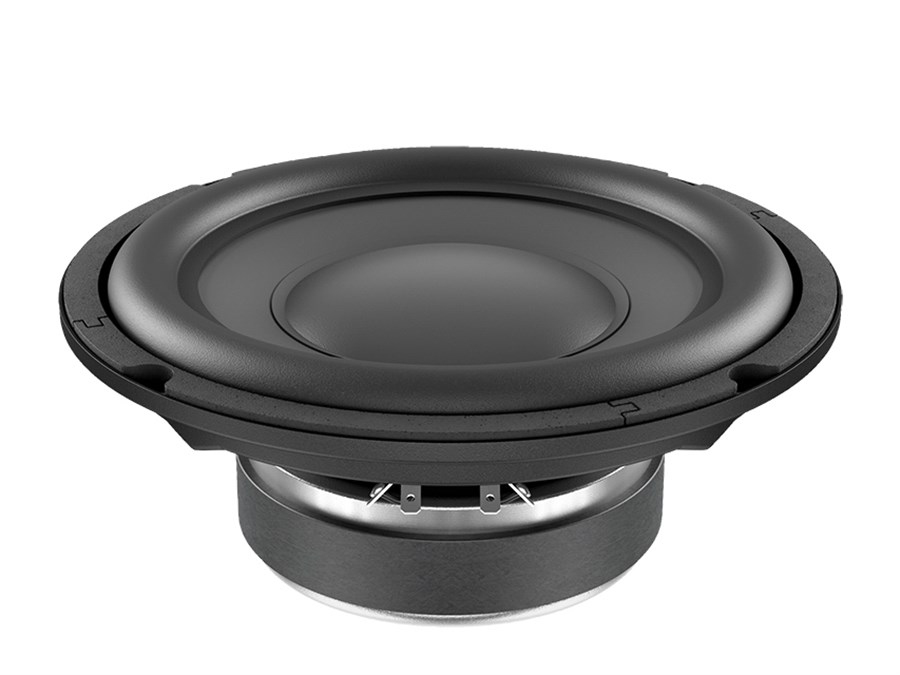

Lavoce SSF081.50 8 inç 400W Hoparlör
Lavoce SSF081.50 8 inç 400W Hoparlör
Lavoce SSF081.50 8 inç 400W Hoparlör

Lavoce SSF081.50 8 inç 400W Hoparlör

Marka : Lavoce
Fiyat : $99.86(KDV Dahil)

Lavoce SSF081.50 8 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SSF081.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SSF081.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1.5 INCH COPPER VOICE COIL
90 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,8
Program power W 400
AES Power rating W 200
Sensitivity dB 89
Frequency range Hz 50 ÷ 500
Voice coil diameter mm (in) 38 (1.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 120 x 60 x 22 (4.7 x 2.4 x 0.9)
Coil material   Copper
Former material   Aluminium
Cone material   Water Proof Treated Paper
Surround material   Rubber
Xmax mm (in) 6,3 (0.25)
Xmech mm (in) 10,3 (0.41)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 16,5 (0.65)
Driver displacement volume l (ft³) 0,7 (0.03)
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,3
Resonance frequency (Fs) Hz 47
Moving mass (Mms) g (oz) 46,6 (1.64)
Compliance (Cms) mm/N 0,24
Force factor (Bxl) N/A 12,6
Mechanical Q-factor (Qms)   3,7
Electrical Q-factor (Qes)   0,45
Total Q-factor (Qts)   0,40
Equivalent air volume (Vas) l (ft3) 16 (0.57)
Voice coil inductance (Le) mH 1,43
Diaphragm area (Sd) cm2 (in.2) 216 (33.48)
Reference efficiency (Eta 0)   0,35%
SHIPPING INFORMATION
Net weight kg (lb) 2,5 (5.5)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 120 (10.2 x 10.2 x 4.7)
Multipack weight kg (lb) 3,1 (6.9)
