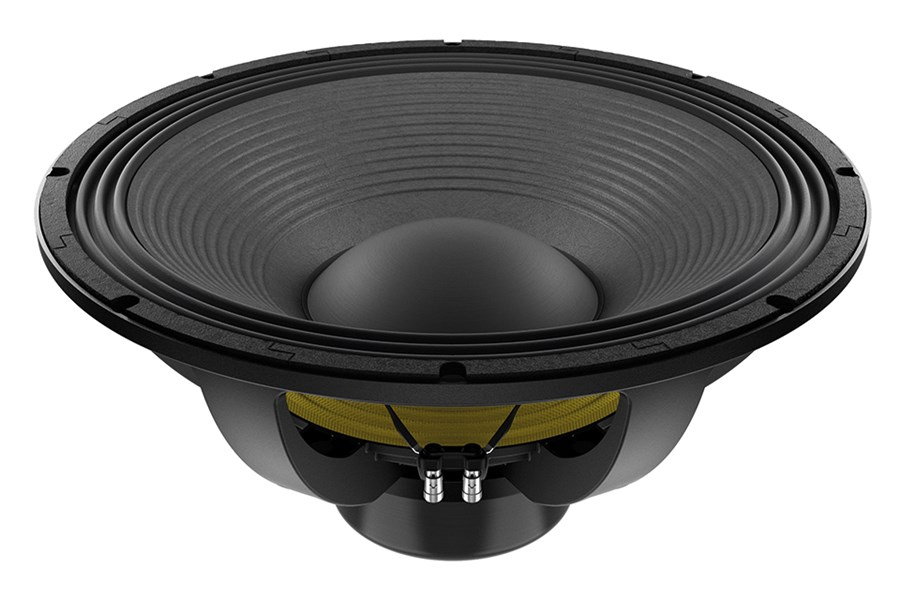

Lavoce SAN215.30 21 inç 4000W Hoparlör
Lavoce SAN215.30 21 inç 4000W Hoparlör
Lavoce SAN215.30 21 inç 4000W Hoparlör

Lavoce SAN215.30 21 inç 4000W Hoparlör

Marka : Lavoce
Fiyat : $1,638.00(KDV Dahil)

Lavoce SAN215.30 21 inç 4000W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SAN215.30 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SAN215.30'u www.medumuzikmarket.com'dan satın alabilirsiniz.

5,3 INCH COPPER VOICE COIL
97 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 530 (21)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,9
Program power W 4000
AES Power rating W 2000
Sensitivity dB 97
Frequency range Hz 30 ÷1000
Voice coil diameter mm (in) 134 (5.3)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 130 x 35 x 14 (5.12 x 1.38 x 0.55)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Both Sides Treatment
Surround material   Polycotton
Xmax mm (in) 14,9 (0.59)
Xmech mm (in) 26,4 (1.04)
Gap height mm (in) 18 (0.71)
Voice coil winding height mm (in) 38,8 (1.53)
Driver displacement volume l (ft³) 10,55 (0.372)
Recommended Enclosure l (ft³) 299 (10.56)
Recommended Tuning Hz 32
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5.3
Resonance frequency (Fs) Hz 32
Moving mass (Mms) g (oz) 458,8 (16.18)
Compliance (Cms) mm/N 0.052
Force factor (Bxl) N/A 38,27
Mechanical Q-factor (Qms)   5.67
Electrical Q-factor (Qes)   0.34
Total Q-factor (Qts)   0.32
Equivalent air volume (Vas) l (ft3) 214,53 (7.58)
Voice coil inductance (Le) mH 2.79
Diaphragm area (Sd) cm2 (in.2) 1700 (263.5)
Reference efficiency (Eta 0)   2,08 %
Efficiency bandwidth product (EBP) Hz 94
SHIPPING INFORMATION
Net weight kg (lb) 17 (37.5)
Multipack size W x D x H mm x mm x mm (in x in x in) 570 x 570 x 299 (22.4 x 22.4 x 11.8)
Multipack weight kg (lb) 20,2 (44.5)
