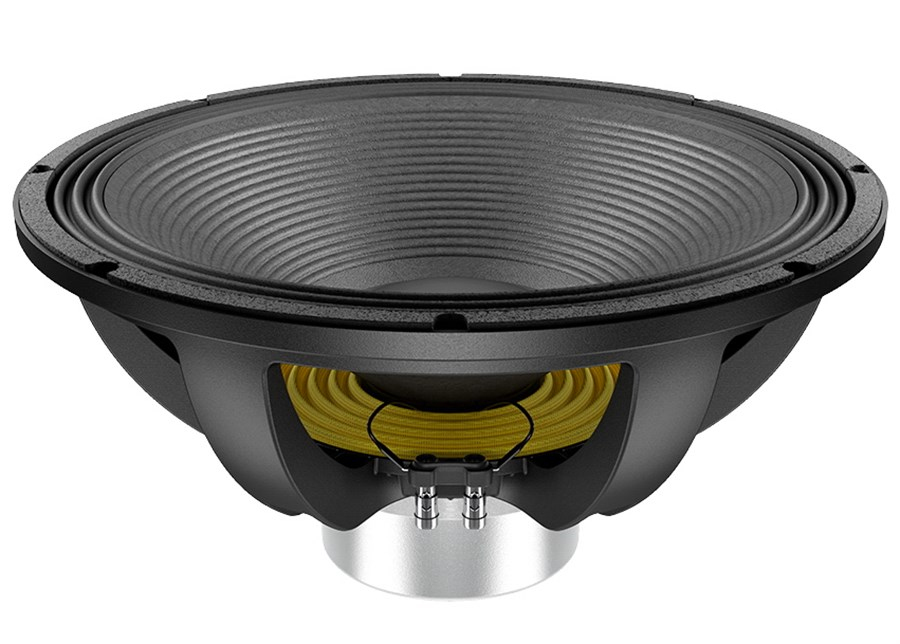

Lavoce SAN184.50 18 inç 3400W Hoparlör
Lavoce SAN184.50 18 inç 3400W Hoparlör
Lavoce SAN184.50 18 inç 3400W Hoparlör

Lavoce SAN184.50 18 inç 3400W Hoparlör

Marka : Lavoce
Fiyat : $1,321.20(KDV Dahil)

Lavoce SAN184.50 18 inç 3400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SAN184.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SAN184.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

4.5 INCH CCAW VOICE COIL
97 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 460 (18)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,1
Program power W 3400
AES Power rating W 1700
Sensitivity dB 97
Frequency range Hz 30 ÷1000
Voice coil diameter mm (in) 115 (4.5)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 113 x 40 x 17 (4.45 x 1.57 x 0.67)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Both Sides Treatment
Surround material   Polycotton
Xmax mm (in) 15,5 (0.61)
Xmech mm (in) 24 (0.94)
Gap height mm (in) 14 (0.55)
Voice coil winding height mm (in) 38 (1.5)
Driver displacement volume l (ft³) 7,64 (0.27)
Recommended Enclosure l (ft³) 226,5 (8.0)
Recommended Tuning Hz 35
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,4
Resonance frequency (Fs) Hz 36
Moving mass (Mms) g (oz) 325,3 (11.47)
Compliance (Cms) mm/N 0,059
Force factor (Bxl) N/A 38,0
Mechanical Q-factor (Qms)   7,27
Electrical Q-factor (Qes)   0,28
Total Q-factor (Qts)   0,27
Equivalent air volume (Vas) l (ft3) 124,8 (4.41)
Voice coil inductance (Le) mH 4,2
Diaphragm area (Sd) cm2 (in.2) 1225 (189.9)
Reference efficiency (Eta 0)   2,10 %
Efficiency bandwidth product (EBP) Hz 129
SHIPPING INFORMATION
Net weight kg (lb) 13,5 (29.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 520 x 520 x 280 (20.5 x 20.5 x 11)
Multipack weight kg (lb) 15,1 (33.3)
