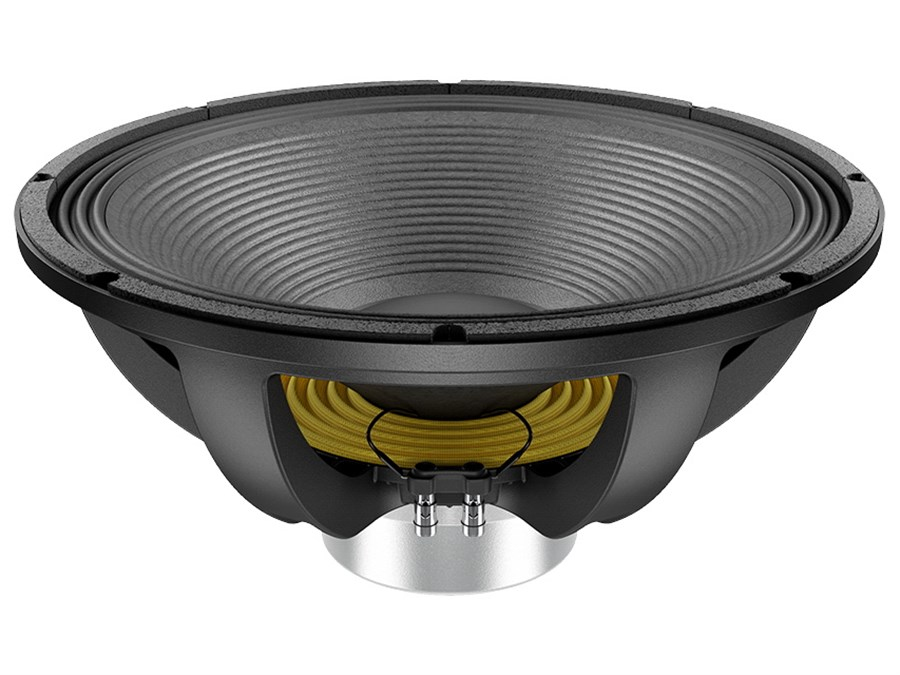

Lavoce SAN184.02 18 inç 2400W Hoparlör
Lavoce SAN184.02 18 inç 2400W Hoparlör
Lavoce SAN184.02 18 inç 2400W Hoparlör

Lavoce SAN184.02 18 inç 2400W Hoparlör

Marka : Lavoce
Fiyat : $778.80(KDV Dahil)

Lavoce SAN184.02 18 inç 2400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SAN184.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce SAN184.02 www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH COPPER VOICE COIL
96.5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 460 (18)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6
Program power W 2400
AES Power rating W 1200
Sensitivity dB 96,5
Frequency range Hz 40 ÷ 1000
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 94 x 20 x 8 (3.7 x 0.8 x 0.3)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatmen
Surround material   Polycotton
Xmax mm (in) 9,5 (0.37)
Xmech mm (in) 15,8 (0.62)
Gap height mm (in) 11 (0.43)
Voice coil winding height mm (in) 24,5 (0.96)
Driver displacement volume l (ft³) 7,8 (0.28)
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 38
Moving mass (Mms) g (oz) 255 (8.99)
Compliance (Cms) mm/N 0,07
Force factor (Bxl) N/A 27,3
Mechanical Q-factor (Qms)   11,9
Electrical Q-factor (Qes)   0,42
Total Q-factor (Qts)   0,40
Equivalent air volume (Vas) l (ft3) 150 (5.3)
Voice coil inductance (Le) mH 1,9
Diaphragm area (Sd) cm2 (in.2) 1225 (189.9)
Reference efficiency (Eta 0)   1,8 %
SHIPPING INFORMATION
Net weight kg (lb) 9 (19.8)
Multipack size W x D x H mm x mm x mm (in x in x in) 558 x 558 x 260 (22 x 22 x 10.2)
Multipack weight kg (lb) 12,9 (28.3)
