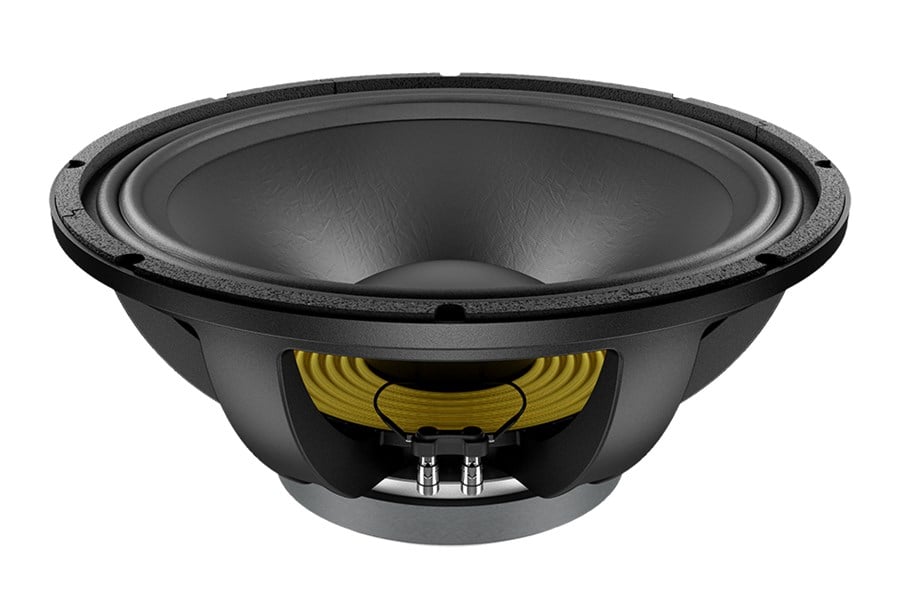

Lavoce SAF184.01 18 inç 1400W Hoparlör
Lavoce SAF184.01 18 inç 1400W Hoparlör
Lavoce SAF184.01 18 inç 1400W Hoparlör

Lavoce SAF184.01 18 inç 1400W Hoparlör

Marka : Lavoce
Fiyat : $565.47(KDV Dahil)

Lavoce SAF184.01 18 inç 1400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SAF184.01 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir, en uygun

lavoce SAF184.01ı www.medumuzikmarket.com'dan satın alabilirsiniz.

4 INCH COPPER VOICE COIL
99 dB/SPL SENSITIVITY

GENERAL SPECIFICATIONS
Nominal diameter mm (in) 460 (18)
Nominal Impedance Ohm 8
Minimum impedance Ohm 5,8
Program power W 1400
AES Power rating W 700
Sensitivity dB 99
Frequency range Hz 30 ÷1400
Voice coil diameter mm (in) 100 (4)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 220 x 110 x 25 (8.66 x 4.72 x 0.98)
Coil material   Copper
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 6,8 (0.27)
Xmech mm (in) 13 (0.51)
Gap height mm (in) 11 (0.43)
Voice coil winding height mm (in) 19 (0.75)
Driver displacement volume l (ft³) 8,5 (0.3)
Recommended Enclosure l (ft³) 159 (5.62)
Recommended Tuning Hz 40
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 4,9
Resonance frequency (Fs) Hz 33
Moving mass (Mms) g (oz) 198,3 (6,99)
Compliance (Cms) mm/N 0,121
Force factor (Bxl) N/A 25,76
Mechanical Q-factor (Qms)   7,98
Electrical Q-factor (Qes)   0,3
Total Q-factor (Qts)   0,29
Equivalent air volume (Vas) l (ft3) 257,25(9.08)
Voice coil inductance (Le) mH 1,62
Diaphragm area (Sd) cm2 (in.2) 1225,4 (189.9)
Reference efficiency (Eta 0)   2.84%
Efficiency bandwidth product (EBP) Hz 40
SHIPPING INFORMATION
Net weight kg (lb) 11,9 (26.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 558 x 558 x 245 (22 x 22 x 9.6)
Multipack weight kg (lb) 15,8 (34.7)
