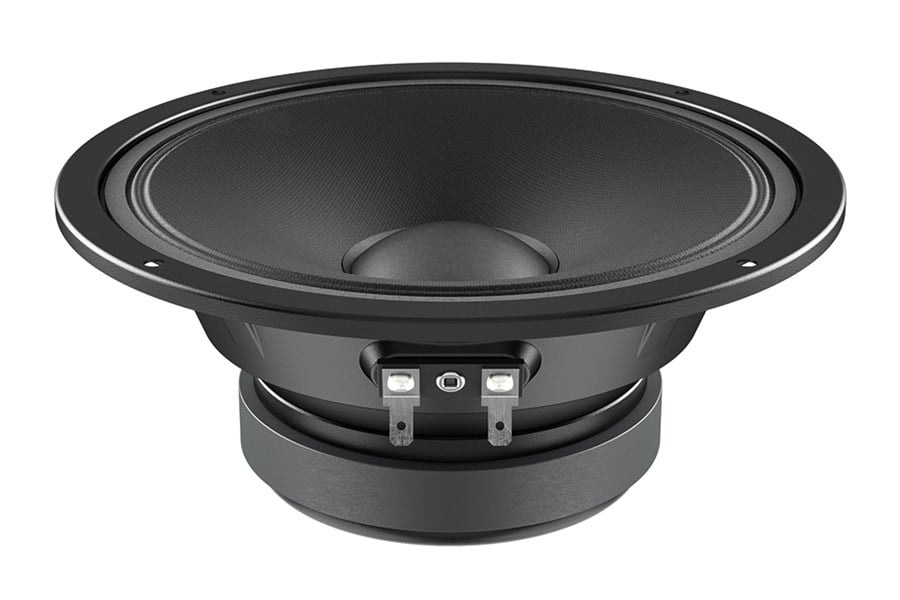

Lavoce MSF061.50 6.5 inç 200W Hoparlör
Lavoce MSF061.50 6.5 inç 200W Hoparlör
Lavoce MSF061.50 6.5 inç 200W Hoparlör

Lavoce MSF061.50 6.5 inç 200W Hoparlör

Marka : Lavoce
Fiyat : $58.80(KDV Dahil)

Lavoce MSF061.50 6.5 inç 200W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce MSF061.50 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce MSF061.50'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1.5 INCH COPPER VOICE COIL
95 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 165 (6.5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,1
Program power W 200
AES Power rating W 100
Sensitivity dB 95
Frequency range Hz 500 ÷ 5000
Voice coil diameter mm (in) 38 (1.5)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 100 x 45 x 15 (3.94 x 1.77 x 0.59)
Coil material   Copper
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 2 (0.08)
Xmech mm (in) 4,5 (0.18)
Gap height mm (in) 6 (0.24)
Voice coil winding height mm (in) 7 (0.28)
Driver displacement volume l (ft³) 0,786 (0.028)
Recommended Enclosure l (ft³) N/A
Recommended Tuning Hz N/A
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,9
Resonance frequency (Fs) Hz 526
Moving mass (Mms) g (oz) 9,25 (0.33)
Compliance (Cms) mm/N 0,01
Force factor (Bxl) N/A 8,17
Mechanical Q-factor (Qms)   15,83
Electrical Q-factor (Qes)   2,7
Total Q-factor (Qts)   2,3
Equivalent air volume (Vas) l (ft3) 0,286 (0.01)
Voice coil inductance (Le) mH 0,42
Diaphragm area (Sd) cm2 (in.2) 143 (22.2)
Reference efficiency (Eta 0)   1,49 %
Efficiency bandwidth product (EBP) Hz 195
SHIPPING INFORMATION
Net weight kg (lb) 1,4 (3.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 410 x 382 x 183 (16.1 x 15 x 7.2)
Multipack weight kg (lb) 12,9 (28.4)
