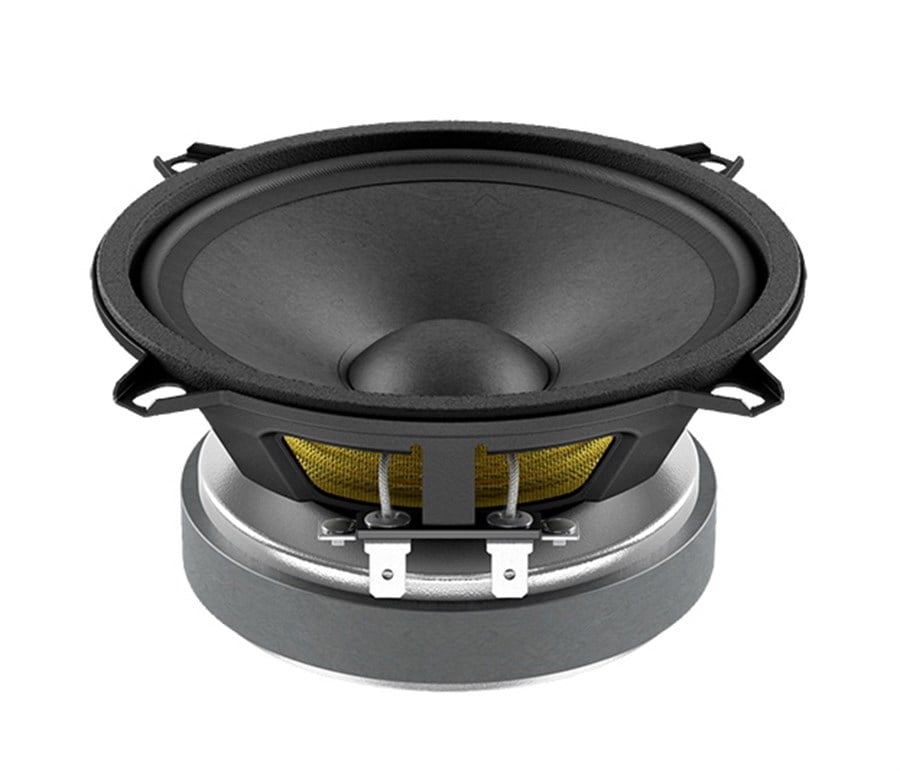

Lavoce MSF051.22 5 inç 140W Hoparlör
Lavoce MSF051.22 5 inç 140W Hoparlör
Lavoce MSF051.22 5 inç 140W Hoparlör

Lavoce MSF051.22 5 inç 140W Hoparlör

Marka : Lavoce
Fiyat : $55.20(KDV Dahil)

Lavoce MSF051.22 5 inç 140W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce MSF051.22 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce MSF051.22'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1.25 INCH CCAW VOICE COIL
92 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 130 (5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,4
Program power W 140
AES Power rating W 70
Sensitivity dB 92
Frequency range Hz 140 ÷ 10000
Voice coil diameter mm (in) 32 (1.25)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 100 x 40 x 15 (3.94 x 1.57 x 0.59)
Coil material   CCAW
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 3,1 (0.12)
Xmech mm (in) 4,85 (0.19)
Gap height mm (in) 5 (0.2)
Voice coil winding height mm (in) 8,7 (0.34)
Driver displacement volume l (ft³) 0,4 (0.014)
Recommended Enclosure l (ft³) 4,91 (0.17)
Recommended Tuning Hz 115
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 141
Moving mass (Mms) g (oz) 6,93 (0.24)
Compliance (Cms) mm/N 0,184
Force factor (Bxl) N/A 7,36
Mechanical Q-factor (Qms)   4,67
Electrical Q-factor (Qes)   0,64
Total Q-factor (Qts)   0,56
Equivalent air volume (Vas) l (ft3) 1,6 (0.06)
Voice coil inductance (Le) mH 0,23
Diaphragm area (Sd) cm2 (in.2) 78,54 (12.2)
Reference efficiency (Eta 0)   0,68%
Efficiency bandwidth product (EBP) Hz 220
SHIPPING INFORMATION
Net weight kg (lb) 1,2 (2.7)
Multipack size W x D x H mm x mm x mm (in x in x in) 494 x 350 x 195 (19.4 x 13.8 x 7.7)
Multipack weight kg (lb) 17,7 (38.9)
