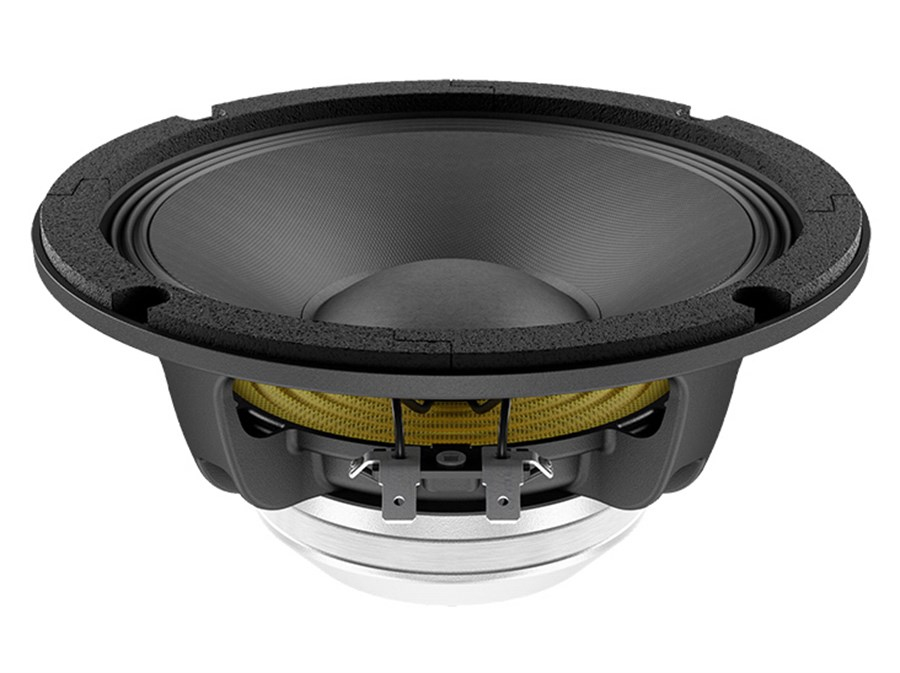

Lavoce MAN061.80 6.5 inç 3000W Hoparlör
Lavoce MAN061.80 6.5 inç 3000W Hoparlör
Lavoce MAN061.80 6.5 inç 3000W Hoparlör

Lavoce MAN061.80 6.5 inç 300W Hoparlör

Marka : Lavoce
Fiyat : $246.00(KDV Dahil)



Lavoce MAN061.80 6.5 inç 300W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce MAN061.80 fiyat performans olarak on plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce MAN061.80'i www.medumuzikmarket.com'dan satın alabilirsiniz

1.8 INCH CCAW VOICE COIL

95,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 165 (6.5)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,8
Program power W 300
AES Power rating W 150
Sensitivity dB 95.5
Frequency range Hz 170 ÷ 6000
Voice coil diameter mm (in) 45 (1.8)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 85 x 55 x 7 (3.35 x 2.2 x 0.28)
Coil material   CCAW
Former material   Glass Fiber
Cone material Water Resistant Treated Paper + Water Proof Front Side Treatment
Surround material   Polycotton
Xmax mm (in) 3 (0.12)
Xmech mm (in) 5,5 (0.22)
Gap height mm (in) 6 (0.24)
Voice coil winding height mm (in) 9 (0.35)
Driver displacement volume l (ft³) 0,4 (0.01)
Recommended Enclosure l (ft³) 7 (0.25)
Recommended Tuning Hz Sealed
  SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,56
Resonance frequency (Fs) Hz 172
Moving mass (Mms) g (oz) 13,26 (0.47)
Compliance (Cms) mm/N 0,065
Force factor (Bxl) N/A 11,03
Mechanical Q-factor (Qms)   4,69
Electrical Q-factor (Qes)   0,65
Total Q-factor (Qts)   0,57
Equivalent air volume (Vas) l (ft3) 1,99 (56.4)
Voice coil inductance (Le) mH 0,087
Diaphragm area (Sd) cm2 (in.2) 147,4 (22.8)
Reference efficiency (Eta 0)   1,49 %
Efficiency bandwidth product (EBP) Hz 265
SHIPPING INFORMATION
Net weight kg (lb) 1,2 (2.5)
Multipack size W x D x H mm x mm x mm (in x in x in) 410 x 370 x 208 (16.1 x 14.6 x 8.2)
Multipack weight kg (lb) 12,8 (28.2)
