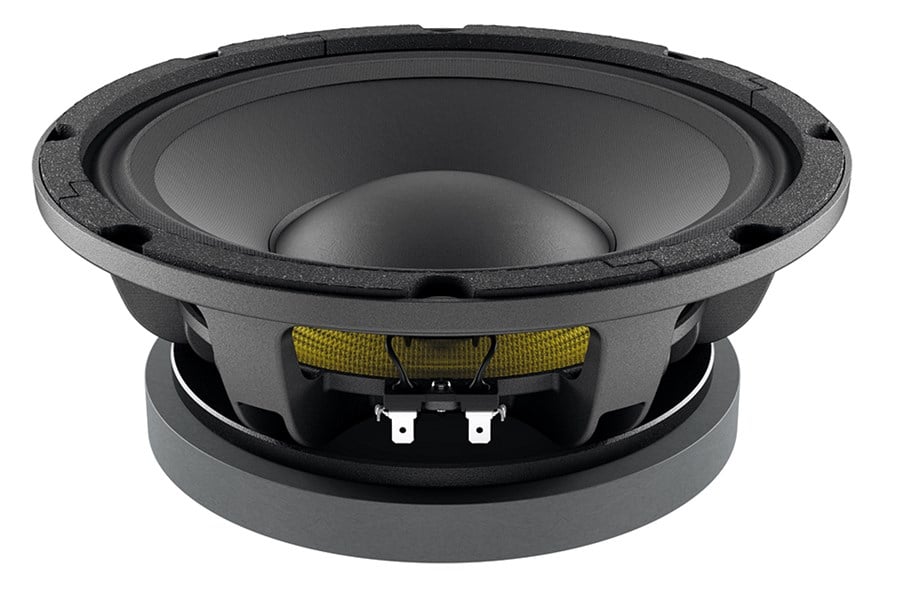

Lavoce MAF103.00 10 inç 700W Hoparlör
Lavoce MAF103.00 10 inç 700W Hoparlör
Lavoce MAF103.00 10 inç 700W Hoparlör

Lavoce MAF103.00 10 inç 700W Hoparlör

Marka : Lavoce
Fiyat : $288.00(KDV Dahil)

Lavoce MAF103.00 10 inç 700W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce MAF103.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce MAF103.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

3 INCH COPPER VOICE COIL
99 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 250 (10)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,3
Program power W 700
AES Power rating W 350
Sensitivity dB 99
Frequency range Hz 70 ÷ 4000
Voice coil diameter mm (in) 75 (3)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 200 x 85 x 19 (7.87 x 3.35 x 0.75)
Coil material   Copper
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 2,2 (0.09)
Xmech mm (in) 6,2 (0.24)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 8,3 (0.33)
Driver displacement volume l (ft³) 1,8 (0.064)
Recommended Enclosure l (ft³) 25,9 (0.92)
Recommended Tuning Hz 85
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,2
Resonance frequency (Fs) Hz 85
Moving mass (Mms) g (oz) 41 (1.45)
Compliance (Cms) mm/N 0,086
Force factor (Bxl) N/A 20,62
Mechanical Q-factor (Qms)   5,77
Electrical Q-factor (Qes)   0,27
Total Q-factor (Qts)   0,25
Equivalent air volume (Vas) l (ft3) 14,88 (0.53)
Voice coil inductance (Le) mH 0,58
Diaphragm area (Sd) cm2 (in.2) 350 (54.3)
Reference efficiency (Eta 0)   3,28 %
Efficiency bandwidth product (EBP)  Hz 315
SHIPPING INFORMATION
Net weight kg (lb) 6,9 (15.2)
Multipack size W x D x H mm x mm x mm (in x in x in) 300 x 300 x 148 (11.8 x 11.8 x 5.8)
Multipack weight kg (lb) 7,8 (17.2)
