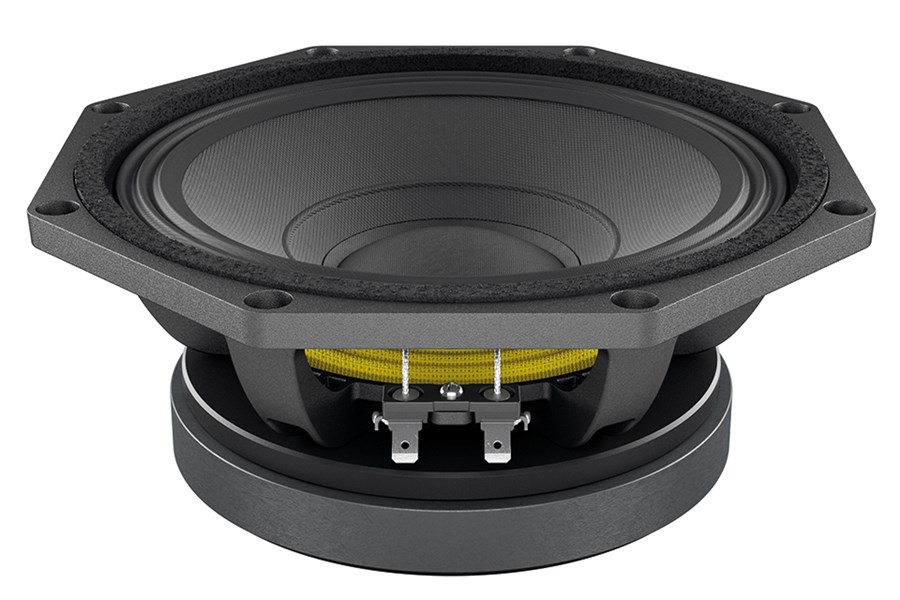

Lavoce MAF082.00 8 inç 400W Hoparlör
Lavoce MAF082.00 8 inç 400W Hoparlör
Lavoce MAF082.00 8 inç 400W Hoparlör

Lavoce MAF082.00 8 inç 400W Hoparlör

Marka : Lavoce
Fiyat : $207.60(KDV Dahil)

Lavoce MAF082.00 8 inç 400W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce MAF082.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce MAF082.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

2 INCH COPPER VOICE COIL
98,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 200 (8)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,5
Program power W 400
AES Power rating W 200
Sensitivity dB 98,5
Frequency range Hz 90 ÷ 5000
Voice coil diameter mm (in) 51 (2)
Chassis material   Aluminium
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 155 x 56 x 17,5 (6.1 x 2.2 x 0.69)
Coil material   Copper
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 2,6 (0.1)
Xmech mm (in) 6,6 (0.26)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 9,2 (0.36)
Driver displacement volume l (ft³) 0,99 (0.035)
Recommended Enclosure l (ft³) 14,7 (0.52)
Recommended Tuning Hz 100
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 58
Resonance frequency (Fs) Hz 75
Moving mass (Mms) g (oz) 17,33
Compliance (Cms) mm/N 0,217
Force factor (Bxl) N/A 17,33
Mechanical Q-factor (Qms)   6,47
Electrical Q-factor (Qes)   0,19
Total Q-factor (Qts)   0,18
Equivalent air volume (Vas) l (ft3) 14,04 (0.5)
Voice coil inductance (Le) mH 0,54
Diaphragm area (Sd) cm2 (in.2) 213,8 (33.1)
Reference efficiency (Eta 0)   3,06 %
Efficiency bandwidth product (EBP) Hz 395
SHIPPING INFORMATION
Net weight kg (lb) 4,1 (9)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 132 (10.2 x 10.2 x 5.2)
Multipack weight kg (lb) 4,7 (10.4)
