Marka : Lavoce
Fiyat : $84.00(KDV Dahil)

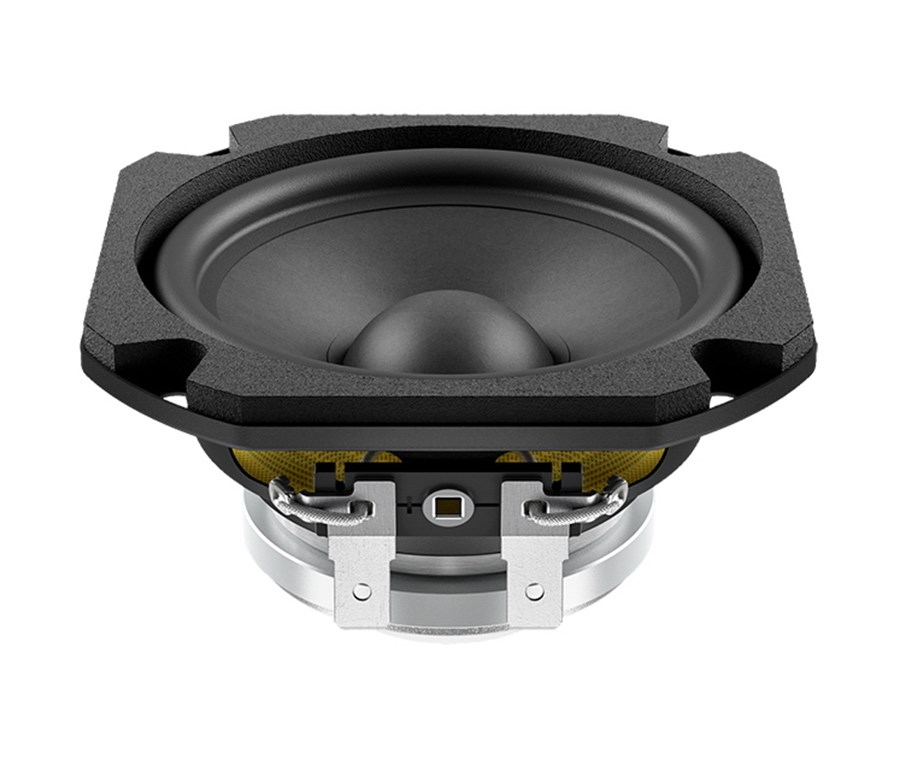

Lavoce FSN030.72 3 inç 60W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSN030.72 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSN030.72'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

0.75 INCH CCAW VOICE COIL
90 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 70 (3)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,9
Program power W 60
AES Power rating W 30
Sensitivity dB 90
Frequency range Hz 120 ÷ 21000
Voice coil diameter mm (in) 20 (0.75)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 50 x 25 x 5 (1.97 x 0.98 x 0.2)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 2,1 (0.08)
Xmech mm (in) 3,1 (0.12)
Gap height mm (in) 4 (0.16)
Voice coil winding height mm (in) 6,3 (0.25)
Driver displacement volume l (ft³) 0,05 (0.002)
Recommended Enclosure l (ft³) 1,93 (0.068)
Recommended Tuning Hz 125
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,5
Resonance frequency (Fs) Hz 127
Moving mass (Mms) g (oz) 2,38 (0.08)
Compliance (Cms) mm/N 0,65
Force factor (Bxl) N/A 5,61
Mechanical Q-factor (Qms)   4,85
Electrical Q-factor (Qes)   0,39
Total Q-factor (Qts)   0,36
Equivalent air volume (Vas) l (ft3) 1,02 (0.04)
Voice coil inductance (Le) mH 0,16
Diaphragm area (Sd) cm2 (in.2) 33,18 (5.1)
Reference efficiency (Eta 0)   0,52%
Efficiency bandwidth product (EBP) Hz 326
SHIPPING INFORMATION
Net weight kg (lb) 0,19 (0.43)
Multipack size W x D x H mm x mm x mm (in x in x in) 490 x 325 x 207 (19.3 x 12.8 x 8.1)
Multipack weight kg (lb) 12,6 (27.8)
