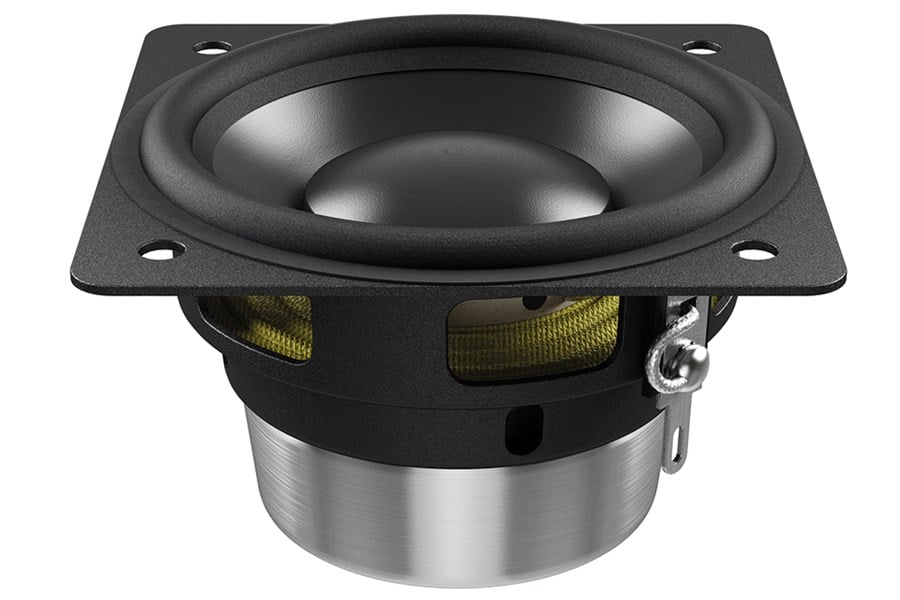

Lavoce FSN021.02 2 inç 50W Hoparlör
Lavoce FSN021.02 2 inç 50W Hoparlör
Lavoce FSN021.02 2 inç 50W Hoparlör

Lavoce FSN021.02 2 inç 50W Hoparlör

Marka : Lavoce
Fiyat : $56.00(KDV Dahil)

Lavoce FSN021.02 2 inç 50W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSN021.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSN021.02'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

1 INCH CCAW VOICE COIL
83 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 50 (2)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6
Program power W 50
AES Power rating W 25
Sensitivity dB 83
Frequency range Hz 140 ÷ 20000
Voice coil diameter mm (in) 25 (1)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 24,9 x 5 (0.98 x 0.2)
Coil material   CCAW
Former material   Polyimide
Cone material   Aluminium
Surround material   Rubber
Xmax mm (in) 2,5 (0.1)
Xmech mm (in) 2,7 (0.11)
Gap height mm (in) 3 (0.12)
Voice coil winding height mm (in) 6,4 (0.25)
Driver displacement volume l (ft³) 0,026 (0.001)
Recommended Enclosure l (ft³) 0,63 (0.022)
Recommended Tuning Hz sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,7
Resonance frequency (Fs) Hz 151
Moving mass (Mms) g (oz) 1,7 (0.06)
Compliance (Cms) mm/N 0,65
Force factor (Bxl) N/A 3,44
Mechanical Q-factor (Qms)   5,5
Electrical Q-factor (Qes)   0,77
Total Q-factor (Qts)   0,68
Equivalent air volume (Vas) l (ft3) 0,33 (0.01))
Voice coil inductance (Le) mH 0,1
Diaphragm area (Sd) cm2 (in.2) 19 (2.9)
Reference efficiency (Eta 0)   0,14%
Efficiency bandwidth product (EBP) Hz 196
SHIPPING INFORMATION
Net weight kg (lb) 0,15 (0.33)
Multipack size W x D x H mm x mm x mm (in x in x in) 260 x 260 x 137 (10.2 x 10.2 x 5.4)
Multipack weight kg (lb) 11,4 (25.2)
