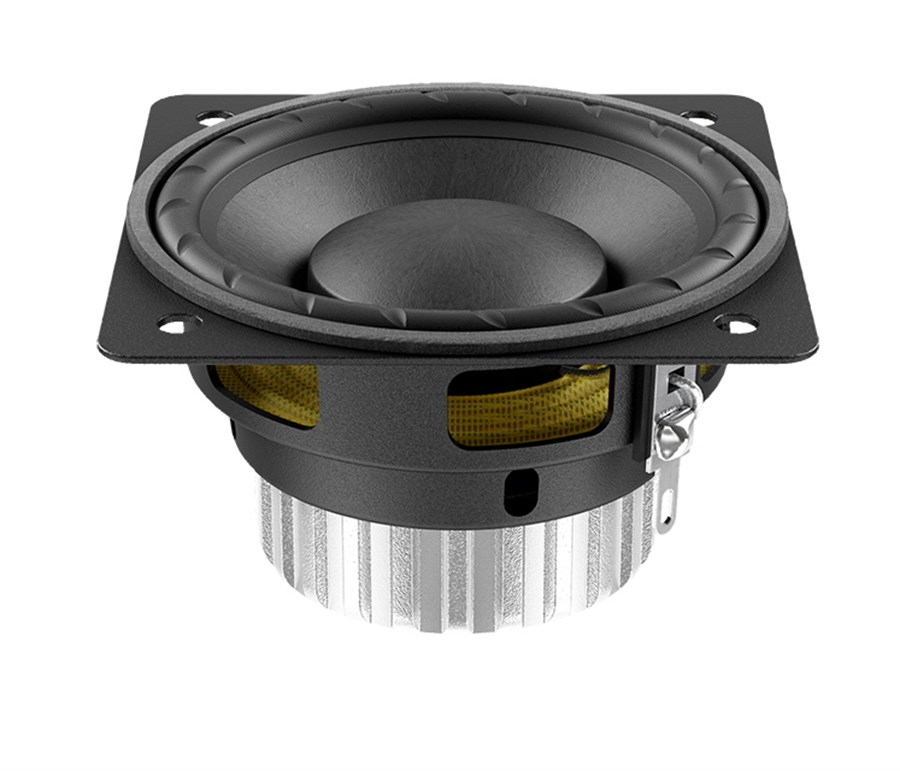

Lavoce FSN021.00 2 inç 40W Hoparlör
Lavoce FSN021.00 2 inç 40W Hoparlör
Lavoce FSN021.00 2 inç 40W Hoparlör

Lavoce FSN021.00 2 inç 40W Hoparlör

Marka : Lavoce
Fiyat : $56.00(KDV Dahil)

Lavoce FSN021.00 2 inç 40W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSN021.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSN021.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

1 INCH CCAW VOICE COIL
88 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 50 (2)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,2
Program power W 40
AES Power rating W 20
Sensitivity dB 88
Frequency range Hz 200 ÷ 20000
Voice coil diameter mm (in) 25 (1)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 24,9 x 3,8 + 22 x 2,5 (0.98 x 0.15) + (0.86 x 0.1)
Coil material   CCAW
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 1,8 (0.07)
Xmech mm (in) 2,4 (0.09)
Gap height mm (in) 3,5 (0.14)
Voice coil winding height mm (in) 5,3 (0.21)
Driver displacement volume l (ft³) 0,024 (0.001)
Recommended Enclosure l (ft³) 1,0 (0.035)
Recommended Tuning Hz sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,8
Resonance frequency (Fs) Hz 219
Moving mass (Mms) g (oz) 1,25 (0.04)
Compliance (Cms) mm/N 0,424
Force factor (Bxl) N/A 3,67
Mechanical Q-factor (Qms)   2,96
Electrical Q-factor (Qes)   0,73
Total Q-factor (Qts)   0,59
Equivalent air volume (Vas) l (ft3) 0,218 (0.01)
Voice coil inductance (Le) mH 0,067
Diaphragm area (Sd) cm2 (in.2) 19,05 (3)
Reference efficiency (Eta 0)   0,30%
Efficiency bandwidth product (EBP) Hz 300
SHIPPING INFORMATION
Net weight kg (lb) 0,12 (0.27)
Multipack size W x D x H mm x mm x mm (in x in x in) 440 x 397 x 182 (17.3 x 15.6 x 7.2)
Multipack weight kg (lb) 11,6 (25.4)
