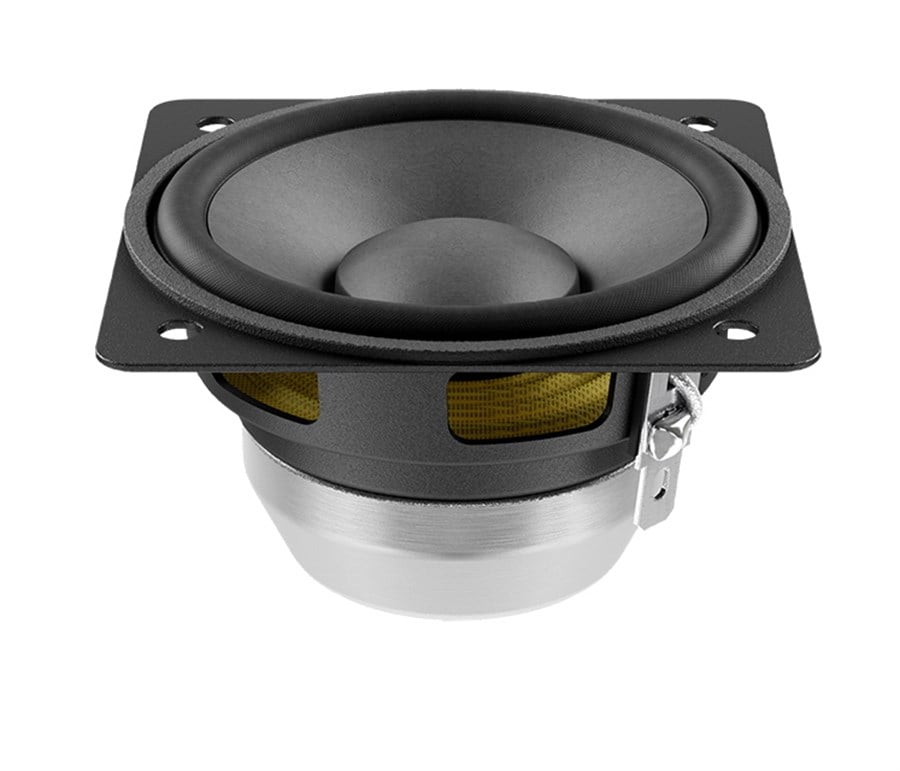

Lavoce FSN020.71F 2 inç 30W Hoparlör
Lavoce FSN020.71F 2 inç 30W Hoparlör
Lavoce FSN020.71F 2 inç 30W Hoparlör

Lavoce FSN020.71F 2 inç 30W Hoparlör

Marka : Lavoce
Fiyat : $45.00(KDV Dahil)

Lavoce FSN020.71F 2 inç 30W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSN020.71F fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSN020.71F'yi www.medumuzikmarket.com'dan satın alabilirsiniz.

0.75 INCH CCAW VOICE COIL
86 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 50 (2)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,9
Program power W 30
AES Power rating W 15
Sensitivity dB 86
Frequency range Hz 200 ÷ 20000
Voice coil diameter mm (in) 20 (0.75)
Chassis material   Steel
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 19 x 5 + 19 x 3 (0.75 x 0.2 + 0.75 x 0.1)
Coil material   CCAW
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 2,4 (0.09)
Xmech mm (in) 2,6 (0.1)
Gap height mm (in) 3 (0.12)
Voice coil winding height mm (in) 12,6 (0.5)
Driver displacement volume l (ft³) 0,028 (0.001)
Recommended Enclosure l (ft³) 1,0 (0.035)
Recommended Tuning Hz sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,4
Resonance frequency (Fs) Hz 212
Moving mass (Mms) g (oz) 1,17 (0.04)
Compliance (Cms) mm/N 0,482
Force factor (Bxl) N/A 3,24
Mechanical Q-factor (Qms)   6,36
Electrical Q-factor (Qes)   0,95
Total Q-factor (Qts)   0,82
Equivalent air volume (Vas) l (ft3) 0,205 (0.01)
Voice coil inductance (Le) mH 0,062
Diaphragm area (Sd) cm2 (in.2) 17,35 (2.7)
Reference efficiency (Eta 0)   0,20%
Efficiency bandwidth product (EBP)  Hz 223
SHIPPING INFORMATION
Net weight kg (lb) 0,15 (0.34)
Multipack size W x D x H mm x mm x mm (in x in x in) 440 x 397 x 182 (17.3 x 15.6 x 7.2)
Multipack weight kg (lb) 12,9 (28.5)
