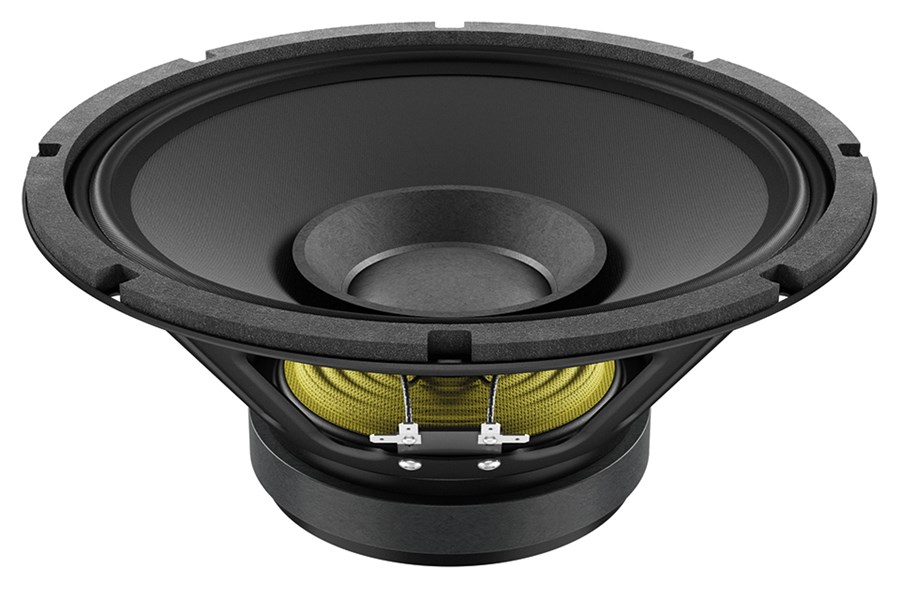

Lavoce FSF122.02 12 inç 300W Hoparlör
Lavoce FSF122.02 12 inç 300W Hoparlör
Lavoce FSF122.02 12 inç 300W Hoparlör

Lavoce FSF122.02 12 inç 300W Hoparlör

Marka : Lavoce
Fiyat : $189.00(KDV Dahil)

Lavoce FSF122.02 12 inç 300W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSF122.02 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSF122.02'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

1.8 INCH COPPER VOICE COIL
98 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 300 (12)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6.5
Program power W 300
AES Power rating W 150
Sensitivity dB 98
Frequency range Hz 60 ÷ 10000
Voice coil diameter mm (in) 45 (1.8)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 155 x 80 x 20 (6.1 x 3.15 x 0.79)
Coil material   Copper
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Polycotton
Xmax mm (in) 3 (0.12)
Xmech mm (in) 7 (0.28)
Gap height mm (in) 8 (0.31)
Voice coil winding height mm (in) 10 (0.39)
Driver displacement volume l (ft³) 2,32 (0.082)
Recommended Enclosure l (ft³) 36,75 (1.30)
Recommended Tuning Hz 90
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,9
Resonance frequency (Fs) Hz 57
Moving mass (Mms) g (oz) 41,7 (1.47)
Compliance (Cms) mm/N 0,186
Force factor (Bxl) N/A 14,76
Mechanical Q-factor (Qms)   5,51
Electrical Q-factor (Qes)   0,4
Total Q-factor (Qts)   0,38
Equivalent air volume (Vas) l (ft3) 65,39 (2.31)
Voice coil inductance (Le) mH 0,55
Diaphragm area (Sd) cm2 (in.2) 498,8 (77.3)
Reference efficiency (Eta 0)   2,90 %
Efficiency bandwidth product (EBP) Hz 143
SHIPPING INFORMATION
Net weight kg (lb) 4,4 (9.7)
Multipack size W x D x H mm x mm x mm (in x in x in) 356 x 356 x 173 (14 x 14 x 6.8)
Multipack weight kg (lb) 5,7 (12.6)
