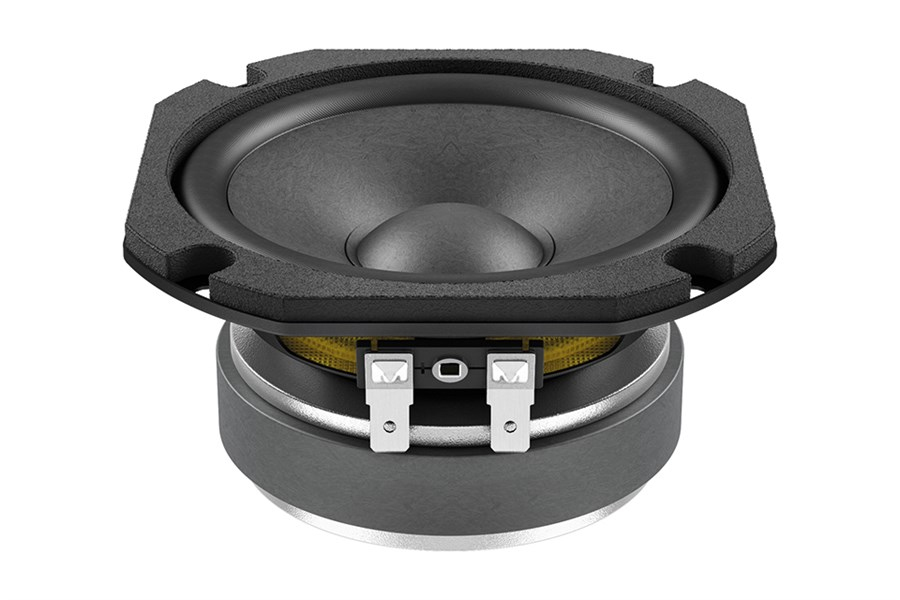

Lavoce FSF041.00 4 inç 80W Hoparlör
Lavoce FSF041.00 4 inç 80W Hoparlör
Lavoce FSF041.00 4 inç 80W Hoparlör

Lavoce FSF041.00 4 inç 80W Hoparlör

Marka : Lavoce
Fiyat : $40.00(KDV Dahil)

Lavoce FSF041.00 4 inç 80W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce SF041.00 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSF041.00'ı www.medumuzikmarket.com'dan satın alabilirsiniz.

1 INCH CCAW VOICE COIL
88,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 100 (4)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,2
Program power W 80
AES Power rating W 40
Sensitivity dB 88,5
Frequency range Hz 110 ÷ 18000
Voice coil diameter mm (in) 25 (1)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 80 x 32 x 15 (3.15 x 1.26 x 0.59)
Coil material   CCAW
Former material   Polyimide
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 2,2 (0.09)
Xmech mm (in) 3,2 (0.13)
Gap height mm (in) 4 (0.16)
Voice coil winding height mm (in) 6,4 (0.25)
Driver displacement volume l (ft³) 0,18 (0.01)
Recommended Enclosure l (ft³) 2,81 (0.999)
Recommended Tuning Hz Sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 5,8
Resonance frequency (Fs) Hz 132
Moving mass (Mms) g (oz) 4,1 (0.14)
Compliance (Cms) mm/N 0,355
Force factor (Bxl) N/A 4,27
Mechanical Q-factor (Qms)   4,09
Electrical Q-factor (Qes)   1,07
Total Q-factor (Qts)   0,85
Equivalent air volume (Vas) l (ft3) 1,47 (0.05)
Voice coil inductance (Le) mH 0,05
Diaphragm area (Sd) cm2 (in.2) 54,11 (8.4)
Reference efficiency (Eta 0)   0,31%
Efficiency bandwidth product (EBP) Hz 123
SHIPPING INFORMATION
Net weight kg (lb) 0,72 (1.58)
Multipack size W x D x H mm x mm x mm (in x in x in) 415 x 370 x 160 (16.3 x 14.6 x 6.3)
Multipack weight kg (lb) 15,6 (34.4)
