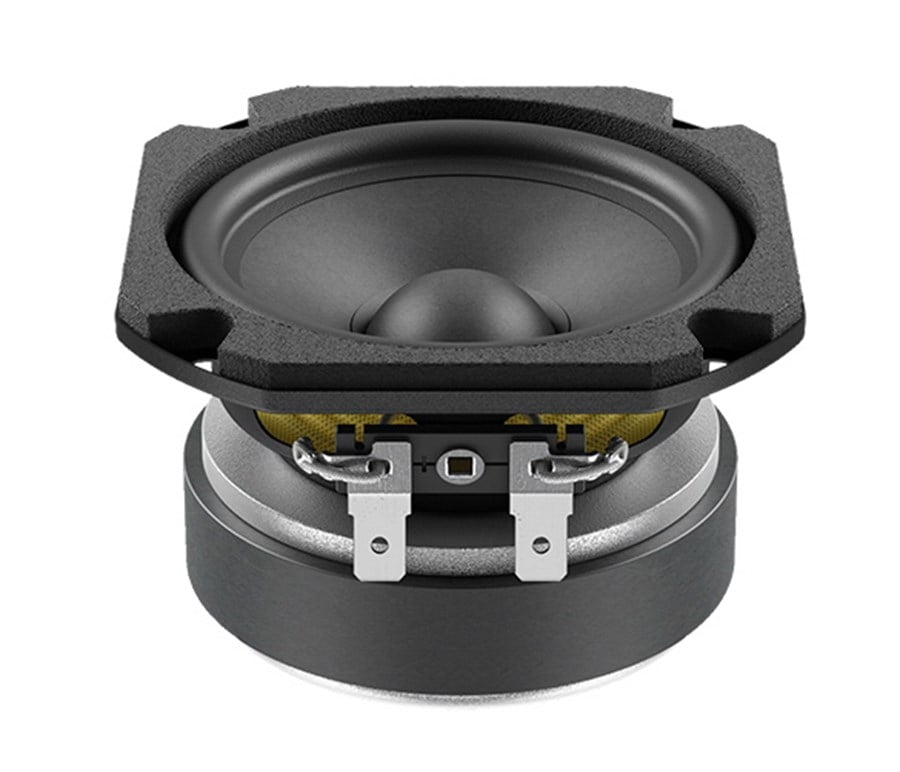

Lavoce FSF030.70 3 inç 60W Hoparlör
Lavoce FSF030.70 3 inç 60W Hoparlör
Lavoce FSF030.70 3 inç 60W Hoparlör

Lavoce FSF030.70 3 inç 60W Hoparlör

Marka : Lavoce
Fiyat : $28.00(KDV Dahil)

Lavoce FSF030.70 3 inç 60W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FSF030.70 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FSF030.70'i www.medumuzikmarket.com'dan satın alabilirsiniz.

0.75 INCH CCAW VOICE COIL
87,5 dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 70 (3)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7
Program power W 60
AES Power rating W 30
Sensitivity dB 87.5
Frequency range Hz 120 ÷ 21000
Voice coil diameter mm (in) 20 (0.75)
Chassis material   Steel
Magnet material   Ferrite
Magnet dimensions OD x ID x h mm (in) 70 x 32 x 15 (2.76 x 1.26 x 0.59)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 2,1 (0.08)
Xmech mm (in) 3,1 (0.12)
Gap height mm (in) 4 (0.16)
Voice coil winding height mm (in) 6,2 (0.24)
Driver displacement volume l (ft³) 0,13 (0.005)
Recommended Enclosure l (ft³) 1,96 (0.067)
Recommended Tuning Hz sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,4
Resonance frequency (Fs) Hz 120
Moving mass (Mms) g (oz) 1,97 (0.07)
Compliance (Cms) mm/N 0,89
Force factor (Bxl) N/A 3,29
Mechanical Q-factor (Qms)   4,04
Electrical Q-factor (Qes)   0,88
Total Q-factor (Qts)   0,73
Equivalent air volume (Vas) l (ft3) 1,39 (0.05)
Voice coil inductance (Le) mH 0,059
Diaphragm area (Sd) cm2 (in.2) 33,18 (5.15)
Reference efficiency (Eta 0)   0,26%
Efficiency bandwidth product (EBP) Hz 136
SHIPPING INFORMATION
Net weight kg (lb) 0,5 (1.1)
Multipack size W x D x H mm x mm x mm (in x in x in) 587 x 238 x 173 (23.1 x 9.4 x 6.8)
Multipack weight kg (lb) 12,3 (27.1)
