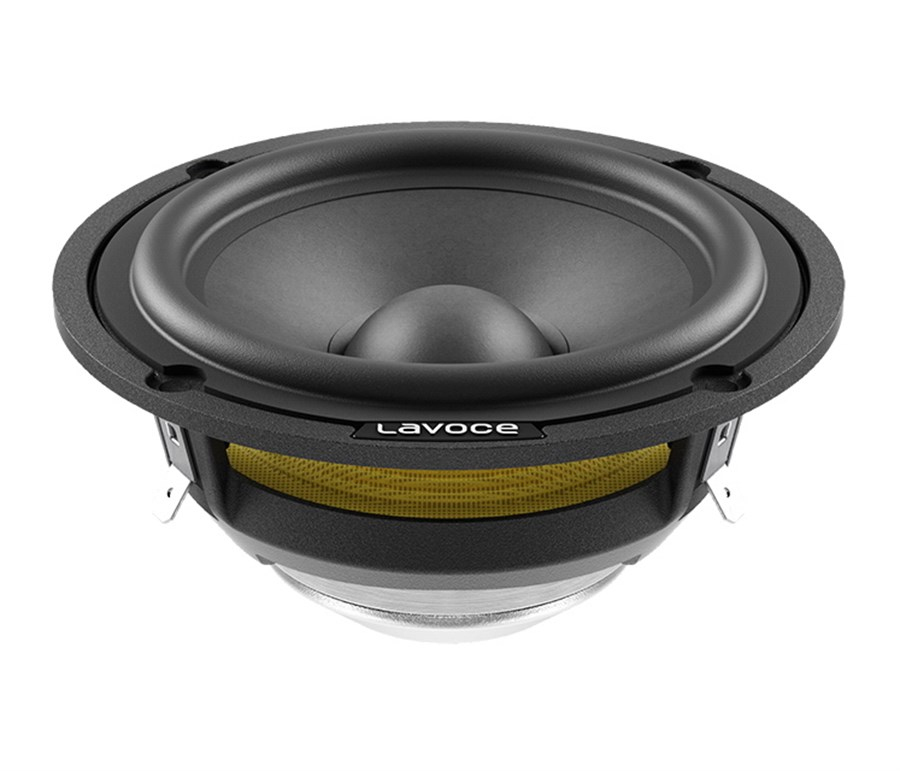

Lavoce FAN030.71 3 inç 60W Hoparlör
Lavoce FAN030.71 3 inç 60W Hoparlör
Lavoce FAN030.71 3 inç 60W Hoparlör

Lavoce FAN030.71 3 inç 60W Hoparlör

Marka : Lavoce
Fiyat : $87.60(KDV Dahil)

Lavoce FAN030.71 3 inç 60W Hoparlör

Çıplak Hoparlör katagorisinde yer alan , Lavoce FAN030.71 fiyat performans olarak ön plana cıkmaktadır, column hoparlörlerde kullanılabilir,

en uygun lavoce FAN030.71'i www.medumuzikmarket.com'dan satın alabilirsiniz.

0.75 INCH CCAW VOICE COIL
88,5  dB/SPL SENSITIVITY



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 70 (3)
Nominal Impedance Ohm 8
Minimum impedance Ohm 6,9
Program power W 60
AES Power rating W 30
Sensitivity dB 88,5
Frequency range Hz 120 ÷ 21000
Voice coil diameter mm (in) 20 (0.75)
Chassis material   Aluminium
Magnet material   Neodymium
Magnet dimensions OD x ID x h mm (in) 45 x 25 x 3,5 (1.77 x 0.98 x 0.14)
Coil material   CCAW
Former material   Glass Fiber
Cone material   Water Resistant Treated Paper
Surround material   Rubber
Xmax mm (in) 2,1 (0.08)
Xmech mm (in) 3,1 (0.12)
Gap height mm (in) 4 (0.16)
Voice coil winding height mm (in) 6,2 (0.24)
Driver displacement volume l (ft³) 0,07 (0.002)
Recommended Enclosure l (ft³) 1,6 (0.06)
Recommended Tuning Hz Sealed
SMALL SIGNAL PARAMETERS
DC resistance (Re) Ohm 6,5
Resonance frequency (Fs) Hz 123
Moving mass (Mms) g (oz) 1,93 (0.07)
Compliance (Cms) mm/N 0,87
Force factor (Bxl) N/A 3,72
Mechanical Q-factor (Qms)   5,5
Electrical Q-factor (Qes)   0,7
Total Q-factor (Qts)   0,62
Equivalent air volume (Vas) l (ft3) 1,35 (0.05)
Voice coil inductance (Le) mH 0,038
Diaphragm area (Sd) cm2 (in.2) 33,18 (5.1)
Reference efficiency (Eta 0)   0,35%
Efficiency bandwidth product (EBP) Hz 176
SHIPPING INFORMATION
Net weight kg (lb) 0,21 (0.46)
Multipack size W x D x H mm x mm x mm (in x in x in) 542 x 355 x 205 (21.3 x 14 x 8.1)
Multipack weight kg (lb) 13,6 (30)
