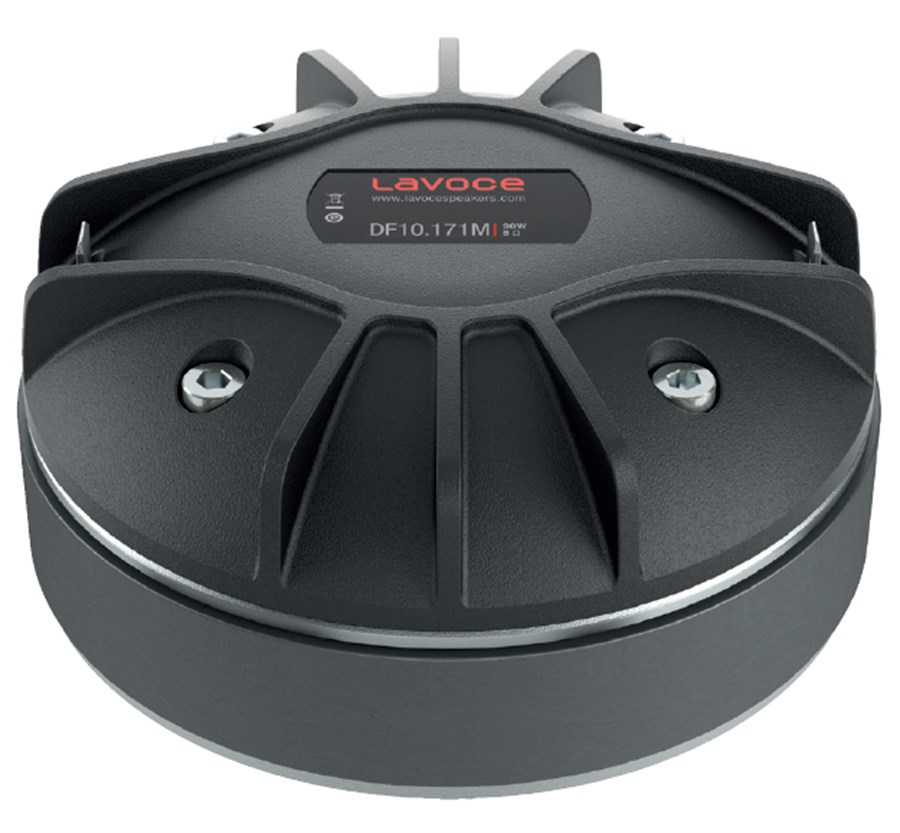

Lavoce DF10.171M 1 inç 90W Tweeter
Lavoce DF10.171M 1 inç 90W Tweeter
Lavoce DF10.171M 1 inç 90W Tweeter

Lavoce DF10.171M 1 inç 90W Tweeter

Marka : Lavoce
Fiyat : $137.16(KDV Dahil)

Lavoce DF10.171M 1 inç 90W Tweeter

Tiz Driver katagorisinde yer alan , Lavoce DF10.171M fiyat performans olarak ön plana cıkmaktadır, en uygun

lavoce DF10.171M'i www.medumuzikmarket.com'dan satın alabilirsiniz.

1.7 INCH Edgewound CCA VOICE COIL
106,5 dB/SPL SENSITIVITY
1200 - 20000 Hz FREQUENCY RANGE



GENERAL SPECIFICATIONS
Nominal diameter mm (in) 25,4 (1)
Nominal Impedance Ohm 8
Minimum impedance Ohm 7,6
Program power W 90
AES Power rating W 45
Sensitivity dB 106,5
Frequency range Hz 1200-20000
Voice coil diameter mm (in) 44,4 (1.7)
Magnet material   Ferrite
Coil material   Edgewound CCA
Former material   Kapton
Diaphragm material   Polyester
Surround material   Polyester,vented
Magnet OD mm (in) 100 (3.94)
Voice coil inductance mH 0,08
Flux density T 1,55
Recommended crossover (4) Hz 2200
Driver displacement volume l (ft³) 0,3 (0.01)
SHIPPING INFORMATION
Net weight kg (lb) 14,5 (32)
Multipack size W x D x H mm x mm x mm (in x in x in) 450 x 420 x 96 (17.7 x 16.5 x 3.8)
Multipack weight kg (lb) 1,4 (3.1)
