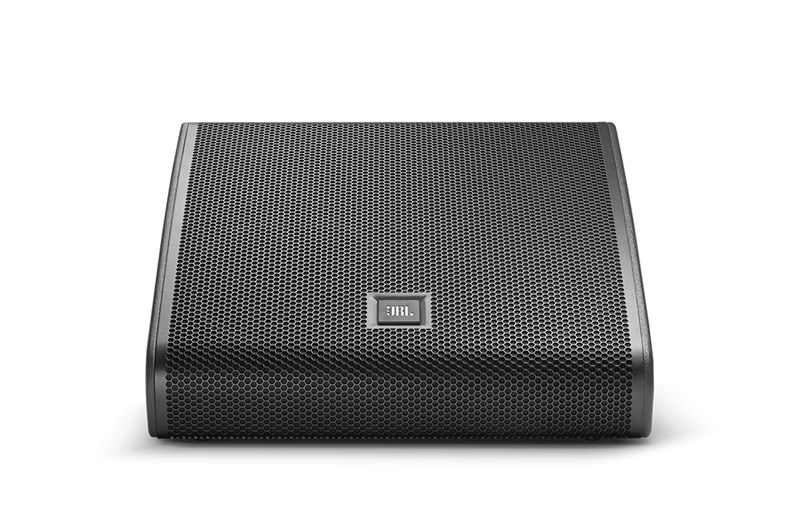

Jbl VTX M22
Dual 12" Professional Stage Monitor
The VTX M Series dual 12” M22 professional stage monitor features a high performance differential drive woofer and the large-format D2 dual-diaphragm dual voice-coil high frequency driver. The option of Single-Channel (Passive) or Dual-Channel (Bi-Amp) operation modes comes standard, allowing the user to choose the right option for the application, with no compromise in output power or performance. Drawing on JBL’s unique history of sharing technological innovations across product lines, the VTX M Series HF waveguide features Image Control Waveguide Technology, which provides a broad and stable 60H x 60V coverage that delivers maximum gain-before-feedback. All of these premium, tour-ready features are enclosed in a modern, low profile design that is lightweight, ergonomic, and show-ready for even the most high profile concerts or broadcast events. And because VTX M Series is part of the VTX family, it comes fully supported in JBL HiQNet Performance Manager with V5 presets.
Features
Elegant, low profile, compact design suitable for touring and high profile broadcast applications State of the art JBL transducers, including Differential Drive™ cone transducers and D2 dual diaphragm dual voice coil compression driver 60x60 High Frequency Waveguide featuring JBL's patented Image Control Waveguide Technology Single-Channel (Passive) and Dual-Channel (Bi-Amp) Operation Modes for maximum flexibility in system configuration and deployment
The revolutionary D2 Dual Driver dramatically improves the sound and performance of high frequencies, providing an extreme output advantage over conventional systems with significantly higher array power, reduced distortion, double the number of voice coils and more than double the power handling. This results in a dramatic increase in pure high frequency sound pressure levels in the same physical footprint with a 30% reduction in weight. LEARN MORE
Enhanced Performance and Dramatically Reduced Driver Weight JBL's exclusive dual voice coil, dual magnetic gap Differential Drive technology is at the core of all VTX models, dramatically reducing driver weight while greatly enhancing all critical performance parameters: frequency response, power output and distortion. LEARN MORE
With the VTX Series you are not just using a product, you are gaining access to an expert system. Tools for system design and all the components to analyze, configure, set up and control a VTX system are all part of the JBL commitment to total system integration and support. The goal is maximum efficiency andthe highest possible level of performance in any venue, anywhere in the world. LEARN MORE
Özellikler
Frequency Range (-10 dB): 45 Hz - 19.5 kHz Coverage Pattern (-6 dB): Horizontal: 60; Vertical: 60 System Input Power Rating: Passive: 1500 W Continuous (IEC / 100 hour), Active: LF: 1500 W Continuous (IEC / 100 hour), HF: 100 W Continuous (IEC / 100 hour) Maximum Peak Output: 138dB (Preset: VTX M22 FR) System Latency: 3.33ms System Processing: Crown Audio I-Tech HD Series, rown Audio I-Tech 4x3500HD System Impedance: Passive: 4 ohms, Active: LF: 4 ohms, HF: 8 ohms Low Frequency Transducer: 2 x 2262H, 304 mm (12 in) diameter, dual 76 mm (3 in) diameter voice coil, NDD®, Direct Cooled™ High Frequency Transducer: 1 x D2430H, D2 dual diaphragm, dual 76mm (3 in) diameter voice coil Monitor Angle: 30 degrees Construction: 18 mm, 11-ply Finnish birch plywood Grille: Powder Coated 14 gauge hex-perforated steel with acoustically-transparent black cloth backing Input Connectors: Passive: Neutrik® Speakon® NL-4 (4x): Selectable: Pins 1 ± or Pins 2 ± Active: Neutrik® Speakon® NL-4 (4x): Pins 1 ± (LF) | Pins 2 ± (HF) Dimensions (H x W x D): 380.1 mm x 670.8 mm x 555.0 mm (15.0 in x 26.4 in x 21.8 in) Net Weight: 27 kg (60 lbs)
