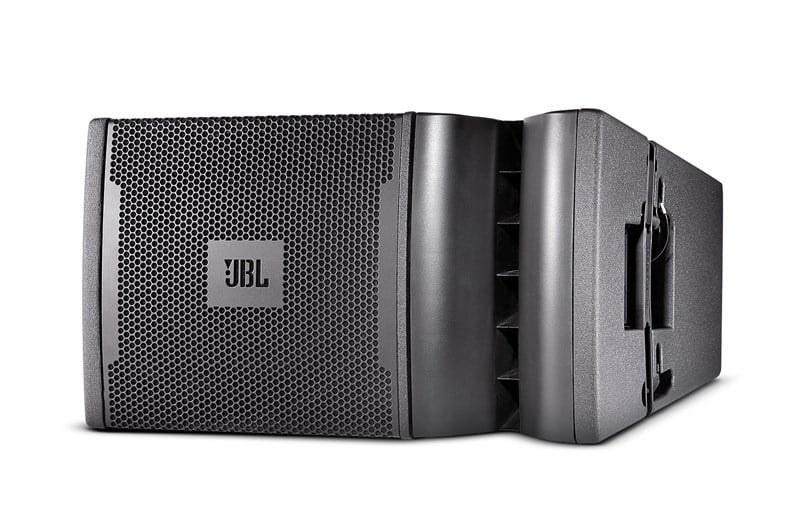

JBL VRX932LA-1 12 inç 800 W / 1600 W / 3200 W Pasif Line Array
JBL’s exclusive neodymium magnet Differential Drive® woofer for high-power capacity and light-weight.
VRX932LA-1 features 3 x 2408J Annular Ring Diaphragm HF drivers. The 2408 represents the latest in JBL Professional compression driver design.
Constant Curvature waveguide for unprecedented array coherence.
Dual angle pole socket for aiming flexibility. One or two speakers may be mounted to a 35 mm pole or
tripod stand.
Integral rigging hardware for simple connection of enclosures and optional array frame. Arrays of up to six enclosures may be flown.
Array Configuration Selector permits “array shading” in passive mode.
Power Rating 800 W / 1600 W / 3200 W
Frequency Range 57 Hz - 20 kHz (-10 dB)
Dimensions
(H x W x D) 343 mm x 597 mm x 376 mm
(13.5 in x 23.5 in x 14.8 in)
Frequency Response 75 Hz - 20 Hz (+/-3db)
Coverage Pattern 100 x 15 nominal
Crossover Modes Bi-amp / passive, externally switchable
Crossover Frequency 132 dB SPL peak 1.2 kHz
System Maximum SPL Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak
System Sensitivity (1w @ 1m Passive: 95 dB SPL
Bi-amp LF: 95 dB SPL
Bi-amp HF: 114 dB SPL
LF Driver 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with
neodymium magnet, dual voice-coils, and dual magnetic gaps.
HF Driver 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium
compression driver
Nominal Impedance Passive: 8 ohm
Bi-amp LF: 8 ohm
Bi-amp HF: 8 ohm
Active Tunings Tunings available at www.jblpro.com
Enclosure 18 mm, 11-ply birch plywood
Suspension / Mounting Optional VRX932LA-AF line array frame kit
Finish Black DuraFlex™ finish
Grille Power coated, black, 16-guage perforated steel with with acoustically transparent foam

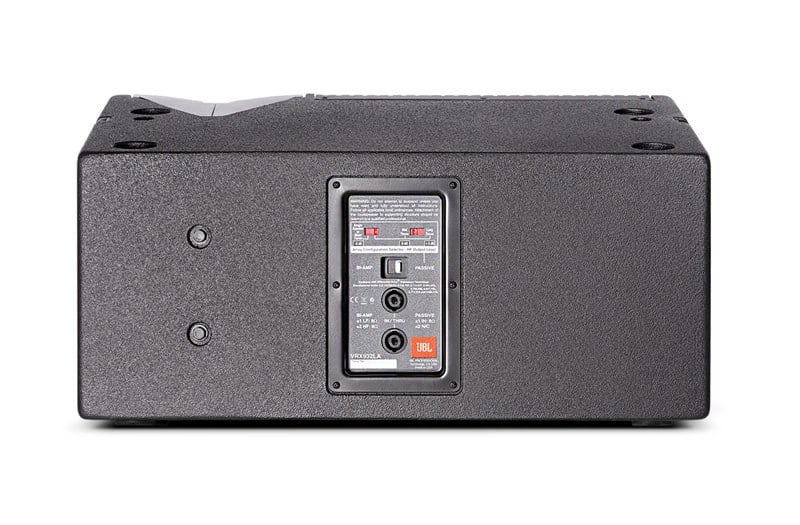

Input Connectors Neutrik® Speakon® NL-4 (x2)
Net Weight 21 kg (46 lb)
Optional Accessories VRX932LA-AF: Suspension array frame
SS2-BK: Tripod speaker stand
SS3-BK: Satellite speaker pole,
41 in (1041 mm)
SS4-BK: Adjustable satellite speaker pole to be used with the SRX718S only
