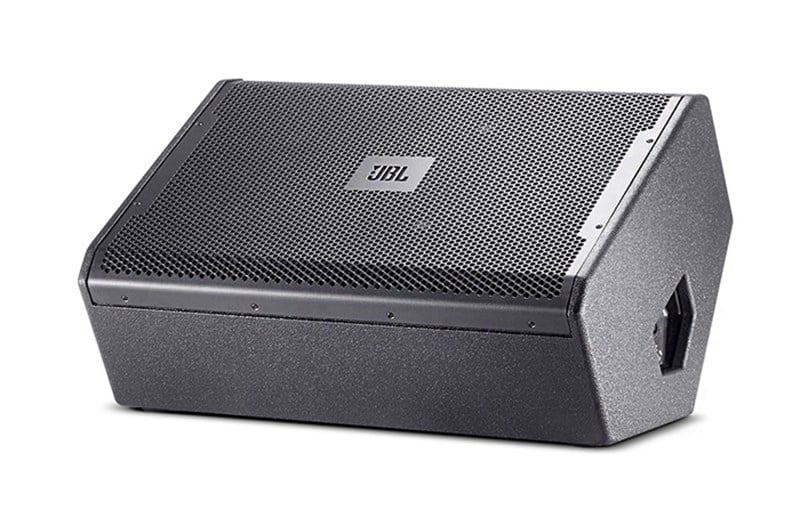

Jbl VRX915M 15'' 1600/3200 Watt 2 Yollu Sahne Monitörü
Compact and low-profile for minimal obstruction of audience sightlines
50° x 90° nominal coverage
Bi-amplified or full-range passive operation
Differential Drive® woofer with neodymium magnet for high power capacity and very light weight
4" (voice coil) diameter compression driver with neodymium magnet
Power Rating 800 W / 1600 W / 3200W
Frequency Range 60 Hz - 20 kHz
Dimensions
(H x W x D) 629 mm x 432 mm x 324 mm (375 mm stage height)
24.75 in x 17 in x 12.75 in (14.75" stage height)
Frequency Response 70 Hz - 20 kHz
Coverage Pattern 50° x 90° nominal
Crossover Modes Passive / Bi-amp
Crossover Frequency 1.1 kHz
System Maximum SPL 127 dB SPL continuous (133 dB SPL peak)
System Sensitivity (1w @ 1m) 98 dB SPL
LF Driver 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms
HF Driver 1 x JBL 2453H-SL, 38 mm (1.5 in) exit compression driver, 100 mm (4 in) voice coil and neodymium magnet
Nominal Impedance 8 ohms
Active Tunings Tunings available at www.jblpro.com
Enclosure Symmetrical stage monitor, 15/18 mm, plywood
Finish Black DuraFlex™ finish
Grille Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing
Input Connectors Neutrik® Speakon® NL-4 (x2), one on each end
Net Weight 21 kg (46.0 lb)
