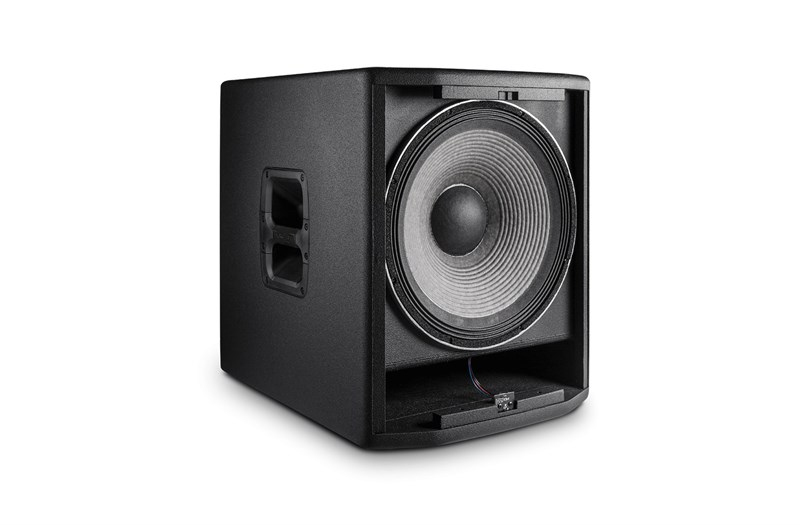

JBL PRX815XLFW 15'' 1500W Aktif Subwoofer , Wifi
Built-in Wi-Fi for wireless control f your system from anywhere in the venue
Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound
Class-leading 1500-watt amplifier delivers ample power to fill your venue
JBL Differential Drive® transducers for higher SPL in a lightweight design
Next-generation JBL neodymium compression drivers
Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through
Intelligent variable-speed fan activates only when needed to reduce noise
Updated tuning delivers flat frequency response and smooth off-axis behavior
Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles
Universal power supply for worldwide compatibility
dbx Type IV™ limiting ensures clear, accurate sound at high volumes
Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance
System Type Self Powered 15” subwoofer
Maximum SPL Output 131 dB peak
Frequency Range (-10 dB) 36 Hz - 98 Hz
Frequency Response (±3 dB) 40 Hz – 87 Hz
Input Connectors Two Balanced female XLR/ 1/4” combo connectors
Input Impedance 20K Ohms (balanced)
Signal Indicators Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting
Signal: Green LED indicates signal present
Power: Blue indicates system has power and ready to pass audio.
Dynamic Control (Input) dbx Type IV™ limiter circuit
System Low Pass 80 Hz DSP
Loop out Crossover Frequency 80 Hz Digital 24db/octave Linkwitz-Riley Filter
Design Highly efficient Class-D amplifier
Power Rating 1500W
AC Power Input 100V - 240V ~ 50/60 Hz
LF Driver 1 x JBL 2275H 15 in woofer
Enclosure Rectangular, 18 mm, birch-poplar mix
Transport 2 x injection molded handles with backing cup
Finish Obsidian DuraFlex™ finish
Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.
Dimensions (H x W x D) 548 mm x 446 mm x 572 mm
(21.6 in x 17.5 in x 22.5 in)
Net Weight 26.3 kg (58.0 lb)
Gross Weight 30.3 kg (66.8 lb)
