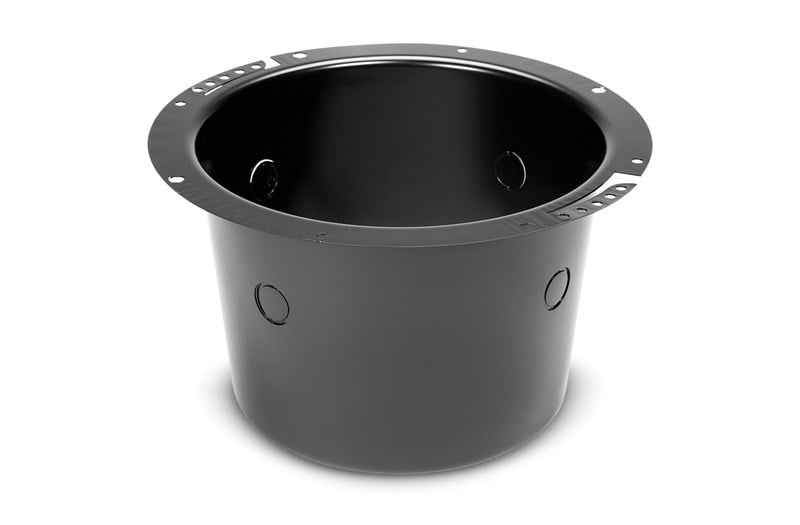

Jbl MTC-81BB8 Pre-Install In-Ceiling Backcan
The MTC-81BB8 is designed for use in applications requiring preinstalled backcans and is compatible with ceiling speakers having a 286 mm (11.25 in) mounting circle diameter, such as the JBL 8138 ceiling loudspeaker, and the JBL MTC-81TB8 tile bridge for suspended ceilings.
Fits 8138 speaker and MTC-81TB8 Tile Bridge
Extra-large 7.4 liter (0.26 cu ft) volume allows for extra bass
Industry standard 286 mm (11.25 in) mounting circle
Five conduit knockouts
Nesting during storage minimizes storage space requirements
Internal Volume 7.4 liters (0.26 cu ft)
Knockouts 22 mm (0.87 in) diameter opening
Five (5) locations 4 on side of can
1 on top of panel of can
Suspension Tabs 2 flexible perforated mounting straps, one on each side.
Attachment Points 4 clip-nuts on 286 mm (11.25 in) mounting circle fix M4 tapping screws for attaching tile bridge to backcan, plus 4 thru holes providing clearance for screws from speaker to attach to tile bridge (see assembly drawing).
Material 16 gauge (1.3 mm thick) steel, finished in black polymer E-coating for a high level of rust resistance.
Dimensions (H x W x D) 178 mm (7 in) height x 300 mm (11.75 in) width and depth
Net Weight (ea) 1.1 kg (2.5 lbs)
Shipping Weight (ea) 1.5 kg (3.2 lbs)
Associated Models 8138 200 mm (8 in) ceiling speaker
MTC-81TB8 tile bridge for 600 mm (24 in) ceiling tile applications.
