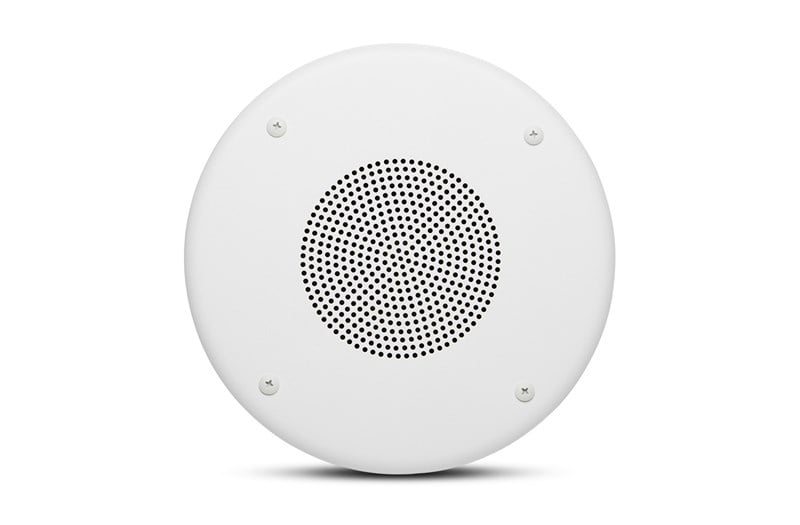

JBL CSS8004 - 4'' 5 Watt Tavan Hoparlörü
High 90 dB sensitivity
5 Watt multi-tap transformer for 100V, 70V and 25V distributed lines
Very wide 175° coverage
Fits CSS-BB4 backcan
Driver Size (dual-cone) 100 mm (4 in)
Driver Sensitivity (mid-range)
(1W [2.83V], 1m, 2k – 6k Hz) 90 dB
Frequency Range (-10 dB)
Driver/Grille Assembly 85 Hz – 18 kHz
Installed in CSS-BB backcan 130 Hz – 18 kHz
Coverage (2 kHz) 175°
Driver Continuous Power Handling 15 Watts
100V Taps 5W, 2.5W, 1.3W
70V Taps 5W, 2.5W, 1.3W, 0.7W
25V Taps 5W, 2.5W, 1.3W, 0.7W
Transformer Insertion Loss 1.5 dB Maximum
Transformer Connection Bare wire
Motor Mass 200 g (7 oz)
Safety Agency Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.
Matching CSS Backcan CSS-BB4
Other Compatible Backcans N/A
Bolt Mounting Circle to Backcan 4 points on 165 mm
(6.5 in) diameter
Cutout Diameter
Open-back 125 mm (5.0 in)
In CSS-BB backcan 170 mm (6.7 in)
Depth (behind grille) 94 mm (3.7 in)
Grille Diameter 198 mm (7.8 in)
Net Weight (ea) 0.90 kg (1.0 lb)
Shipping Weight (ea) 1.26 kg (2.8 lb)
Included Accessories 4 pcs M4 x 40 mm sheet metal screws for attaching speaker/driver/transformer assembly to corresponding backcan.
