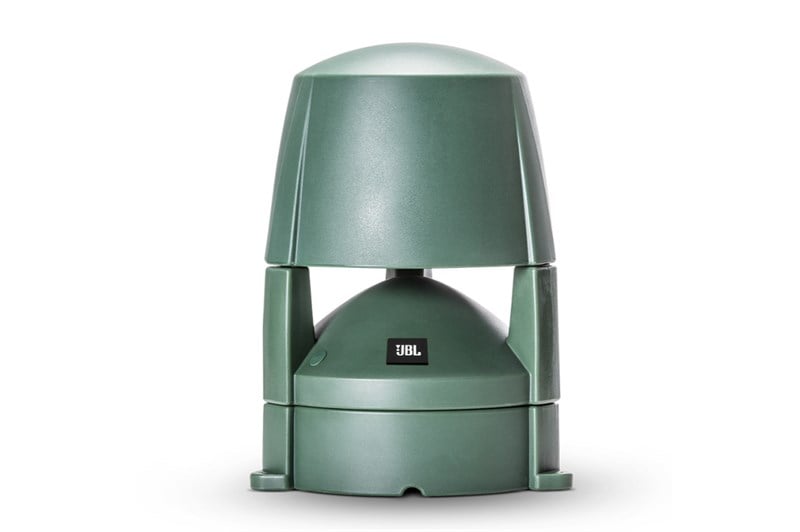

Jbl CONTROL 85M 2 Yollu 5.25'' Bahçe Hoparlörü
Şık tasarımı, yüksek kalitesi ve en uygun fiyatıyla Jbl marka CONTROL 85M'yi medumuzikmarket.com adresinden satın alabilirsiniz.
Two-Way 5.25 inch (135mm) Coaxial Mushroom Landscape Speaker
Designed for outdoor applications, the highly weather resistant Control 80 Series Landscape speakers provide excellent full-range sound quality and 360 degree coverage. Designed to be mounted on or in the ground, Control 80 Series Landscape speakers can be used in a wide variety of applications including shopping malls, theme parks, sports venues, hotels, casinos, resorts, restaurants, hospitality and leisure venues, entrance ways, and anywhere a high quality music and/or paging speaker landscape speaker is required. Compact in design, the speaker is unobtrusive and easily blends in with its surroundings. A tough polyethylene enclosure resists abuse from lawn care equipment and the elements, and the enclosure color extends throughout the material so the speaker will maintain color even when scraped or scratched.
Features
Components:
8” highly weather-resistant driver
1” soft-dome highly weather-resistant tweeter
120W Pink Noise Power Handling (240W program) in direct 8Ώ setting, plus built-in 60W 70V/100V multi-tap transformer
Tough polyethylene highly weather resistant enclosure
Fully isolated center chamber for wiring protection
High fidelity sound character with broad frequency range of 47Hz - 16kHz
Frequency Response (-10 dB): 47 Hz - 16 kHz
Frequency Response (±3 dB): 60Hz - 15 kHz
Power Rating1: 240 W Continuous Program (2 hrs)
120W (480W peak), Continuous Pink Noise (2 hrs)
100W (400W peak) Continuous Pink Noise (100 hrs)
Maximum Input Voltage: 28.0 V
Sensitivity2: 87 dB, 1W @ 1m (ave. 80Hz - 16kHz)
Nominal Coverage Angle: 360° horizontal, 160° vertical (primary listening 10° to 50° up from ground).
Directivity (Q): 2.1
Directivity Index (DI): 3.2 dB
Rated Maximum SPL 3: 108 dB @ 1m
Nominal Impedance: 8Ω (at 8Ω setting)
Minimum Impedance: 6.6Ω at 9.5kHz
Transformer Taps: 70V: 60W, 30W, 15W & 7.5W
100V: 60W, 30W, 15W
Insertion Loss: <0.5 dB at any tap setting
Thru Setting: 8Ω nominal
Crossover Type: 2nd Order LPF on LF and 2nd Order HPF on HF
Recommended Protective High-Pass: 45 Hz for 8Ω operation, 24 dB/oct
80 Hz for 60W tap, 24 dB/oct
50 Hz for 30W, 7.5W, and 7.5W taps, 24 dB/oct
Transducer:
Low Frequency Driver: 200 mm (8.00 in) diameter LF driver, Kapton™ former, 38mm (1.5 in) voice coil, polypropylene cone and polyurethane surround.
High Frequency: 25mm (1.0 in) diameter HF driver Polyetherimide (PEI) dome.
Physical:
Enclosure Material: LDPE Polyethylene plastic, 6 mm wall thickness, UL94V-0 rated.
Grille: Powder coated stainless steel.
Environmental: IP-56 rating per IEC529 (dust protected and protected against strong jets of water). Exceeds MilSpec 810 for humidity, salt
spray, temperature & UV. Passes Mil-STd-202F for salt spray. Enclosure UL94V0 rated.
Agency Ratings: UL 1480 Speakers for Fire Alarm, Emergency, and Commercial and Professional Use, 5th Edition, for outdoor wet locations; UL
1480A Speakers for Commercial and Professional Use, 1st Edition; CSA C22.2 No. 205-12, Signal Equipment. Transformer UL
Recognized per UL1876, ROHS compliant.
Terminals: Bare wire with dielectric-gel-filled wire nuts (internal to top speaker section)
Wiring: Water ingress protected by two stages of gland nuts, one mounted on outside of enclosure (installed by installer via drilling 22
mm (0.875 in, 7/8 in) hole in any of multiple provided locations) and one between the bottom base and top speaker sections.
Included gland nuts require round-jacketed wire with outside diameter between 4.0 mm and 9.0 mm (0.16” in and 0.35” in). For
Installation instructions, see Installation Guide (#IS-C80MLS).
Colors: Hunter Green, RAL6018
Dimensions (H x W x D): 524 x 355 x 355 mm (20.7 x 14 x 14 in.)
Net Weight: 7.8 kg (17 lb)
Shipping Weight: 10.5 kg (23 lb)
Included Accessories: (2) wire nuts, (2) gland nuts, (1) securtiy screwdriver
Installer-Supplied Required Tools: 22mm (0.875 in, 7/8 in) twist-type drill bit (or other type suitable for plastic) for installing gland nut into enclosure.
