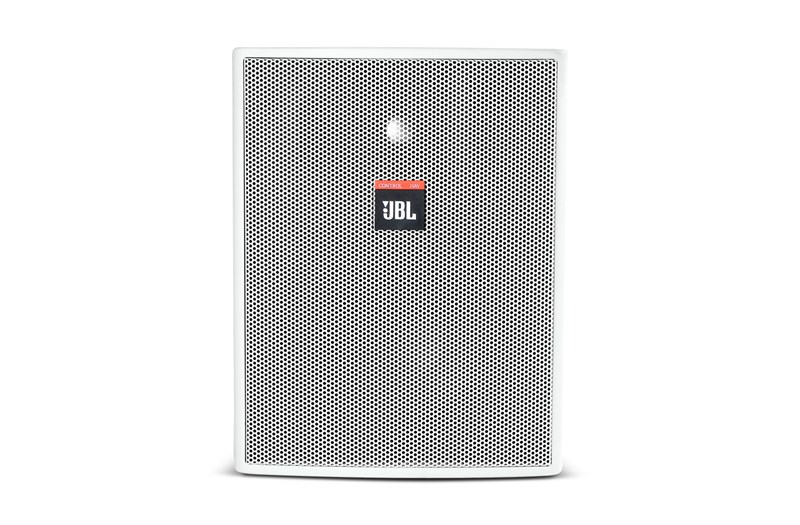

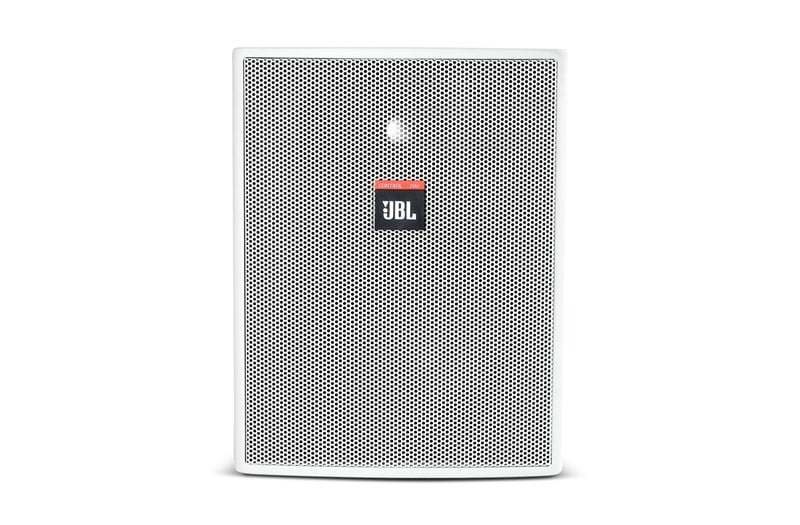

Jbl Control 25AV 5.25'' 60 W 70/100V Kabin Hoparlör
Video shielded for use near video monitors.
Extremely smooth frequency response.
Stainless steel grill for harsh environments.
60 W transformer for 70 V or 100 V lines, with 8 ohms thru.
SonicGuard™ overload protection.
130 mm (5.25 in) polypropylene coated woofer, 10 mm (.75 in) titanium coated horn-loaded tweeter.
Includes InvisiBall® mounting hardware and sealed input panel cover.
Screw-down input terminals.
100° x 100° high frequency horn.
Frequency Range 70 Hz - 23 kHz (-10 dB)
Power Capacity 200 W Continuous Program Power; 100 W Continuous Pink Noise

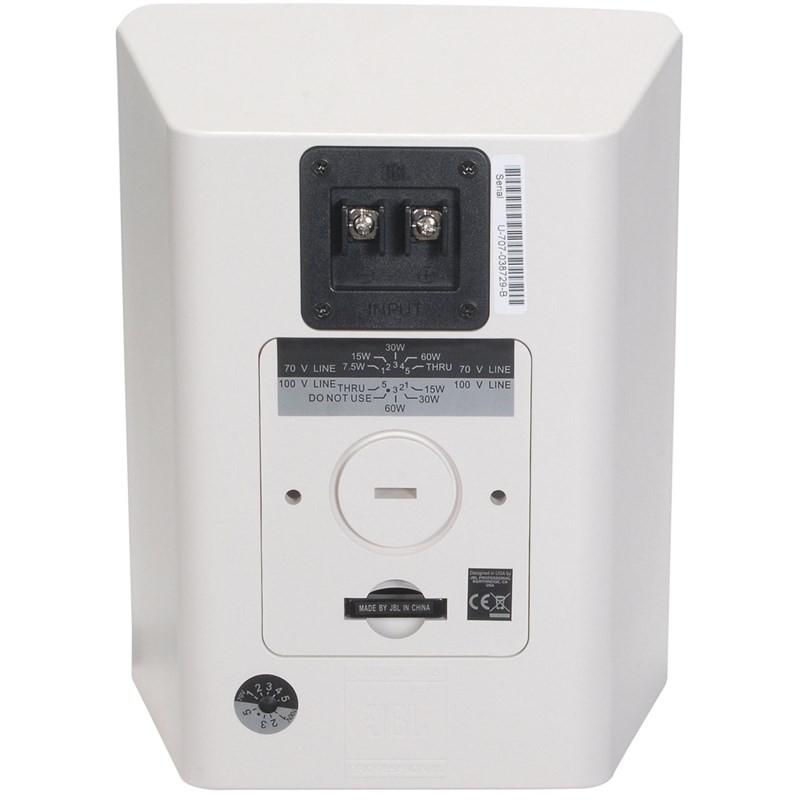

Transformer Taps 70V: 60 W, 30 W, 15 W, 7.5 W
100V: 60 W, 30 W, 15 W
Nominal Sensitivity 87 dB SPL, 1 W @ 1 m (3.3 ft)
Midrange (±1.5 dB, typical) 130 Hz - 14 kHz
Nominal Coverage 100° x 100°
Maximum SPL @ 1m 113 dB continuous peak pink noise 107 dB continuous average pink noise 103 dB continuous average music or speech
Directivity Factor (Q) 4.9 dB, averaged 500 Hz to 4 kHz
Directivity Index (DI) 6.9 dB, averaged 500 Hz to 4 kHz
Nominal Impedance 8 ohms
Minimum Impedance 6.7 ohms at 230 Hz
Crossover Network Second Order Low Pass, Second Order High Pass, Complex Optimization for Maximally Flat Response
Low Frequency 130 mm (5.25 in) polypropylene-coated paper with WeatherEdge surround, 25 mm (1 in) voicecoil on kapton former
High-Frequency 20 mm (.75 in) titanium coated PEI
Enclosure Material High Impact polystyrene
Grille Painted stainless steel, black or white to match cabinet, paintable
Overload Protection Full-range power limiting to protect network and transducers. Internal fuse to protect during exceptional overload condition
Environmental Exceeds Mil Spec 810 for humidity, salt spray, temperature & UV. IEC 529 IP-X4 splashproof rating
Terminations Screw-down terminal strip, zinc-plated copper base, nickel plated metal screws/washers, accepts up to 9 mm outside 4 mm inside open lug (#6, #8 or #10), plus bare wire. (up to 12 AWG)
Safety Agency Rating Transformer is listed per UL1876
Colors Black or white (-WH)
Rotation Against wall on InvisiBall Base: 37° vertical 44° horizontal On bracket: 44°
all directions
Dimensions (H x W x D) 236 x 186 x 159 mm
(9.3 x 7.4 x 6.3 in)
Net Weight (ea) 4.0 kg (9 lb)
Shipping Weight (ea) 9.0 kg (20 lb) per pair
Included Accessories 1 Pr MTC-PC input panel cover, InvisiBall mounting base, 6 mm x 100 mm InvisiBall hex wrench
Optional Accessories MTC-25V: For vertical columnar orientation of up to 3 loudspeakers extension of the woofer surround that MTC-25/23H: For horizontal splaying of two speakers. Three brackets array up to six loudspeakers in a 360° array. MTC-28/25CM: Ceiling-mount adapter.
